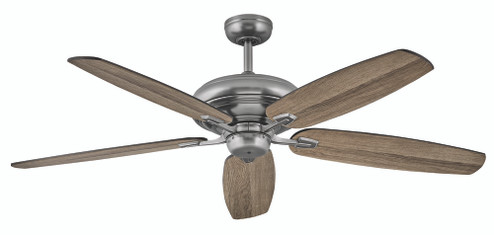

Grander is a perfect blend of modern and traditional elements, creating a silhouette that complements virtually any interior space. Available in an assortment of five stylish finishes with reversible blades, it features DC motor technology to deliver excellent energy efficiency. Blades are included with every fan. {ADDITIONAL FINISH INFORMATION: ''Pewter''}
- OPTION:
- TITLE 24
- STYLE:
- Transitional
- FAMILY:
- Grander
- BLADE FINISH:
- DRIFTWOOD MATTE BLACK
- BLADE PITCH:
- 13.5
- BLADE SPAN:
- 60
- BLADES INCLUDED:
- 5
- LENGTH:
- 60.00
- LIGHT KIT INCLUDED:
- No
- MATERIAL:
- Steel
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 12''
- SHIP CARTON LENGTH:
- 17.0
- SHIP CARTON WIDTH:
- 17.0''
- SHIP WEIGHT:
- 26.0
- VENDOR SHIP METHOD:
- Parcel
- VOLTAGE:
- 120
- WEIGHT:
- 23.3
- WIRE INCLUDED:
- 1 X 76''
- More Info {1}:
- Installation Link
- BLADE MATERIAL:
- Wood
- BLADE OPTIONS AVAILABLE:
- NO
- CEILING TO BLADE HEIGHT:
- 13.5''
- CONTROL TYPE:
- WALL CONTROL - 6 SPEED REVERSING
- DRY RATED:
- Yes
- DUAL MOUNT:
- NO
- ENERGY COST HIGH:
- 9.0000
- ENERGY COST LOW:
- 5
- ENERGY STAR:
- No
- F&B AUTOMATIC F&B:
- Blades Reversible Dry Rated Finish Group - Brushed Nickel Single Circuit Required Wifi control compatible
- F&B INCLUDED:
- Fan Control included 6 Spd wall
- F&B MOUNTING:
- FAN: 6'' Rod Included FAN: 7ft from floor FAN: Install Slope Ceiling
- F&B STYLE:
- Style Fan - Transitional
- FAN CONTROL INCLUDED:
- Yes
- FAN CONTROL PART NUMBER:
- 980014FWH-R
- INSTALL SLOPED CEILING:
- Yes
- LIGHT KIT ADAPTABLE:
- NO
- MOTOR NAME:
- 165M
- OPERATING FREQUENCY:
- 60
- PROP 65:
- Yes
- RECEIVER INCLUDED:
- YES
- REVERSING CONTROL:
- Yes
- SINGLE POWER SWITCH:
- YES
- SLOPE DEGREE:
- 22
- TITLE 20:
- NO
- TITLE 24:
- NO
- WIFI CONTROL:
- YES
- FINISH:
- PEWTER
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Transitional
- HEIGHT:
- 16.00
- WIDTH:
- 60.00
- BLADES INCLUDED1:
- YES
- LIGHT KIT INCLUDED REMOVEABLE:
- NO
- OPTIONAL ITEMS:
- 930005FAW-AM 930005FAW-WF 980003FWH 980015FAS-0066
- OPTIONAL LIGHT KIT:
- 930005FAW-AM 930005FAW-WF
- OPTIONAL REMOTE CONTROL:
- 980003FWH
- OPTIONAL WIFI MODULE ACCESSORY:
- 980015FAS-0066
- PROP 65 WARNING:
- CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- INTRODUCTION DATE:
- 01-01-2020
- MOTOR FAN SPEED:
- 6 Speed
- REGENCY SERIES:
- NO
- AVAILABLE FOR PURCHASE:
- YES
- AIR FLOW CFM:
- 7823.0000
- AIR FLOW EFFICIENCY:
- 251.0000
- AMPERAGE:
- 0.4400
- CANOPY:
- 6'' DIA.
- ELECTRICITY USED:
- 31.1000
- MOTOR RPM:
- 169.0000
- WARRANTY:
- FANS - MOTOR - RES999999 - COM999999 FANS - BLADES CONTROLS SWITCHES CAPACITORS HARDWARE - RES365 - COM365 INDOOR OUTDOOR FANS - BASE WARRANTY - RES730 - COM730
- AIRFLOWCFM LOW:
- 5148
- AIRFLOWEFFICIENCY LOW:
- 270
- AMPS LOW:
- 0.25
- BLADES REVERSIBLE:
- YES
- ELECTRICITYUSED LOW:
- 19
- MOTORRPM LOW:
- 107
- SAFETY RATING:
- C-US DRY RATED
- SAFETY RATING1:
- ETL
- BULB DIMMABLE:
- YES WITH DIMMABLE LAMP (NOT INCLUDED)
- AIRFLOWEFFICIENCY AVG:
- 270.0000
- BRAND:
- HINKLEY FAN
- CANOPY DEPTH:
- 2.2500
- AIRFLOWCFM AVG:
- 5148.0000
- AMPS AVG:
- 0.2500
- ELECTRICITYUSED AVG:
- 19.00
- ENERGY COST AVG:
- 5
- F B INCLUDED:
- FAN CONTROL INCLUDED 6 SPD WALL
- F B MOUNTING:
- FAN: 6'' ROD INCLUDED FAN: 7FT FROM FLOOR FAN: INSTALL SLOPE CEILING
- MOTORRPM AVG:
- 107.0000
- QUANTITY AVAILABLE AT MANUFACTURER:
- 213
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 56'' AND OVER
