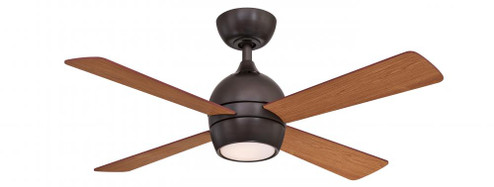

Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''Dark Bronze''}
- REQUIRED (NOT INCLUDED):
- 1 18 WATT CONNECTOR PIN LED MODULE BULBS
- OPTION:
- ENERGY EFFICIENT
- GLASS:
- Opal Frosted
- FAMILY:
- Kwad 44
- NUMBER OF BULBS:
- 1
- ADDITIONAL INFO:
- 3 speed AC motor with reverse switch - fan speed light and sleep timer functions
- AIR FLOW CFM:
- 3533
- AIR FLOW EFFICIENCY:
- 80
- AMPERAGE:
- 0.37
- BLADE FINISH:
- Cherry/Dark Walnut
- BLADE PITCH:
- 12
- BLADES INCLUDED:
- 4
- BULB TYPE:
- LED MODULE
- CANOPY:
- 6.5 DIA X 2.58 H
- DIAMETER:
- 8.4
- DOWN ROD INCLUDED:
- 4.5
- ELECTRICITY USED:
- 44
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000
- LENGTH:
- 44
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1500
- MATERIAL:
- Wood
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 195
- MOTOR SIZE:
- 153 X 13
- MOTOR TYPE:
- AC
- REMOTE CONTROL INCLUDED:
- TR500
- SHIP CARTON HEIGHT:
- 10.12''
- SHIP CARTON LENGTH:
- 25.91
- SHIP CARTON WIDTH:
- 10.87''
- SHIP WEIGHT:
- 16.69
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 14.77
- AIRFLOW EFFICIENCY LOW:
- 113
- AIRFLOW EFFICIENCY MEDIUM:
- 105
- AVG AIRFLOW EFFICIENCY:
- 88
- AVG CFM ENERGY:
- 2579
- AVG ENERGY USE (WATTS):
- 29
- AVG ESTIMATED YEARLY ENERGY COST:
- 8
- BLADE MATERIAL:
- Wood
- BLADE REVERSIBLE:
- Yes
- BLADE SWEEP:
- 44
- CARTON CUBIC FEET:
- 1.65
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 10.12''
- CASE LENGTH:
- 25.91
- CASE WEIGHT POUNDS:
- 16.69
- CASE WIDTH:
- 10.87''
- CEILING:
- YES
- CFM LOW:
- 1497
- CFM MEDIUM:
- 2633
- COMPATIBLE ACCESSORIES:
- CCK8002DZ DR1-12DZ DR1-18DZ DR1-24DZ DR1-36DZ DR1-48DZ DR1-60DZ DR1-72DZ DR1-CPDZ SCB1-52
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CRL4WH WFR50
- COMPATIBLE WALL CONTROLS:
- CWRL4LA CWRL4WH WC2WH WR501WH
- CONTROL TYPE:
- Handheld
- CRI:
- 90
- CURRENT DRAW LOW:
- 0.18
- CURRENT DRAW MEDIUM:
- 0.28
- DOE CLASSIFICATION:
- LSSD
- DRY RATED:
- Yes
- INCLUDED CONTROL:
- TR500
- LEADWIRE:
- 54
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 84
- RPM MEDIUM (IV):
- 140
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- WATTS LOW:
- 10
- WATTS MEDIUM:
- 25
- WATTS PER BULB:
- 18
- HEIGHT:
- 15.05
- WIDTH:
- 44.00
- WALL:
- YES
- FINISH:
- BRONZE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- STANDARD STYLE:
- TRADITIONAL
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- DOE-FTC UPLOADED:
- Yes
- HAMONIZED CODE:
- 8414.51.3000
- LIGHT KIT ENERGY STAR 4:
- No
- MAXIMUM SLOPE DEGREE:
- 27
- REVERSE SWITCH LOCATION:
- Motor Housing
- ADDITIONAL INFO1:
- 3533 CFM ON HIGH
- ADDITIONAL INFO2:
- LIMITED LIFETIME WARRANTY
- ADDITIONAL INFO3:
- TR500 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- ADDITIONAL INFO4:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- CANOPY1:
- Diameter- 6.5 Height- 2.58''
- AIRFLOW EFFICIENCY LOW1:
- 147
- AIRFLOW EFFICIENCY MEDIUM1:
- 62
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 12
- BLADE FINISH METHOD:
- Paper Overlay
- CEILING TO BLADE EDGE:
- 12.27
- CEILING TO BOTTOM (NO LK):
- 13.2
- CEILING TO BOTTOM (NO LK)1:
- 13.69
- RPM MEDIUM (IV)1:
- 81
- VOLTAGE CYCLES:
- 60 HZ
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 40-45''
- CEILING TO BOTTOM (WITH LK):
- 15.05
- AVAILABLE FOR PURCHASE:
- NO
- ADDITIONAL INFO5:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- BLADE FINISH METHOD TYPE:
- PAPER OVERLAY
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 4
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 1
- AVG ENERGY USE WATTS:
- 29
- CEILING TO BOTTOM NO LK:
- 14.2
- More Info {1}:
- CONTROL: INCLUDES A TR500 HAND-HELD REMOTE WITH ONE 12V 23A BATTERY - PUSH BUTTONS CONTROL 3 FAN SPEEDS INFINITE LIGHT LEVELS FAN/LIGHT TIMER AND POWERING ON/OFF
- More Info {2}:
- INSTALLATION: MOUNTS TO FLAT OR MINIMALLY SLOPED CEILINGS WITH THE INCLUDED 1-IN DIAMETER X 4.5-IN LENGTH DOWNROD.
- More Info {3}:
- LIGHTING: INCLUDES INTEGRATED 18-WATT DIMMABLE LED LIGHT KIT WITH OPAL FROSTED GLASS SHADE
- More Info {4}:
- LOCATION: DRY RATED FOR INDOOR USE ONLY MAKING IT IDEAL FOR SPACES LIKE BEDROOMS LIVING ROOMS KITCHEN OR OFFICE
- More Info {5}:
- OPTIONAL DOWNRODS ARE AVAILABLE IN LENGTHS UP TO 72 INCHES TO ADJUST THE FANS HEIGHT BETWEEN 7-FT TO 9-FT FROM THE FLOOR ENSURING MAXIMUM AIRFLOW''
- BULB BASE:
- CONNECTOR PIN
- BULB CRI:
- 90
- BULB WATTAGE:
- 18
- CANOPY DIAMETER:
- 6.5 DIA
- CANOPY HEIGHT:
- 2.58 H''
- CASE QUANTITY:
- 1
- CURRENT DRAW HIGH:
- 0.37
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- HOUSING DIAMETER:
- 8.4
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 44
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 195
- HTTPS:
- //WWW.DROPBOX.COM/S/A4HHCR6J00FV1PG/FP7644DZ_SS.PDF:CLICK HERE TO VIEW SPEC SHEET DETAILS
- HTTPS1:
- //WWW.DROPBOX.COM/S/OMRT7J02YY2TPV1/FP7644DZ_OM.PDF:CLICK HERE TO VIEW OWNERS MANUAL
- IMAGE INFO:
- 4/17/2025 10:24
- OPTION1:
- LED
- OPTION2:
- PROP 65
- BLADE SPAN:
- 44
- More Info {6}:
- POWER: THE 3-SPEED ENERGY EFFICIENT AC MOTOR PROVIDES AIRFLOW UP TO 3533 CFM
- More Info {7}:
- SAVINGS: FEATURES A REVERSIBLE MOTOR ALLOWING YOU TO SWITCH THE DIRECTION OF YOUR FANS ROTATION AND CREATE ENERGY SAVINGS
- More Info {8}:
- TECHNOLOGY: COMPATIBLE WITH FANIMATION WIFI FANSYNC AND MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- More Info {9}:
- WARRANTY: LIMITED LIFETIME
- CEILING TO BOTTOM (WITH LIGHT KIT):
- 15.05
- ENERGY EFFICIENT:
- YES
- INDOOR:
- YES
- LED:
- YES
- LOCATION RATING:
- DRY RATED
- MAX WATTAGE:
- 18
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- WATTS HIGH:
- 44
- GLASS FINISH OR STYLE:
- FROSTED
- GLASS FINISH OR STYLE:
- OPAL
