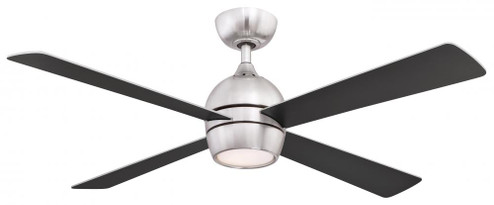

Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- REQUIRED (NOT INCLUDED):
- 1 18 WATT CONNECTOR PIN Bulbs
- OPTION:
- DRY RATED
- GLASS:
- Opal Frosted
- FAMILY:
- Kwad 52
- NUMBER OF BULBS:
- 1
- ADDITIONAL INFO:
- 3 speed AC motor with reverse switch - fan speed light and sleep timer functions
- ADDITIONAL INFO1:
- 3533 CFM ON HIGH
- ADDITIONAL INFO2:
- LIMITED LIFETIME WARRANTY
- ADDITIONAL INFO3:
- TR500 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- AIR FLOW CFM:
- 4738
- AIR FLOW EFFICIENCY:
- 85
- AMPERAGE:
- 0.47
- BLADE FINISH:
- Brushed Nickel/Black
- BLADE PITCH:
- 12
- BLADES INCLUDED:
- 4
- BULB TYPE:
- 18 WATT LED MODULE
- CANOPY:
- 6.5 DIA X 2.58 H
- DIAMETER:
- 8.4
- DOWN ROD INCLUDED:
- 4.5
- ELECTRICITY USED:
- 56
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000
- LENGTH:
- 52
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1500
- MATERIAL:
- Wood
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 170
- MOTOR SIZE:
- 153 X 13
- MOTOR TYPE:
- AC
- REMOTE CONTROL INCLUDED:
- TR500
- SHIP CARTON HEIGHT:
- 10.12''
- SHIP CARTON LENGTH:
- 25.91
- SHIP CARTON WIDTH:
- 10.87''
- SHIP WEIGHT:
- 18.23
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 16.31
- AIRFLOW EFFICIENCY LOW:
- 113
- AIRFLOW EFFICIENCY MEDIUM:
- 107
- AVG AIRFLOW EFFICIENCY:
- 96
- AVG CFM ENERGY:
- 3533
- AVG ENERGY USE (WATTS):
- 37
- AVG ESTIMATED YEARLY ENERGY COST:
- 10
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 16
- BLADE FINISH METHOD:
- Paper Overlay
- BLADE MATERIAL:
- Wood
- BLADE REVERSIBLE:
- Yes
- BLADE SWEEP:
- 52
- CARTON CUBIC FEET:
- 1.65
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 10.12''
- CASE LENGTH:
- 25.91
- CASE WEIGHT POUNDS:
- 18.23
- CASE WIDTH:
- 10.87''
- CEILING TO BOTTOM (WITH LK):
- 15.05
- CFM LOW:
- 2168
- CFM MEDIUM:
- 3677
- COMPATIBLE ACCESSORIES:
- CCK8002BN DR1-12BN DR1-18BN DR1-24BN DR1-36BN DR1-48BN DR1-60BN DR1-72BN DR1-CPBN SCB1-52
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CRL4WH WFR50
- COMPATIBLE WALL CONTROLS:
- CWRL4LA CWRL4WH WC2WH WR501WH
- CONTROL TYPE:
- Handheld
- CRI:
- 90
- CURRENT DRAW LOW:
- 0.24
- CURRENT DRAW MEDIUM:
- 0.38
- DOE CLASSIFICATION:
- LSSD
- DRY RATED:
- Yes
- INCLUDED CONTROL:
- TR500
- LEADWIRE:
- 54
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 77
- RPM MEDIUM (IV):
- 127
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WATTS LOW:
- 14
- WATTS MEDIUM:
- 34
- WATTS PER BULB:
- 18
- HEIGHT:
- 15.05
- HEIGHT RANGE:
- 15-20''
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- CEILING:
- YES
- WALL:
- YES
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- ADDITIONAL INFO4:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- CANOPY1:
- Diameter- 6.5 Height- 2.58''
- AIRFLOW EFFICIENCY LOW1:
- 156
- AIRFLOW EFFICIENCY MEDIUM1:
- 62
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 12.27
- CEILING TO BOTTOM (NO LK):
- 13.69
- CEILING TO BOTTOM (NO LK)1:
- 14.2
- DOE-FTC UPLOADED:
- Yes
- HAMONIZED CODE:
- 8414.51.3000
- LIGHT KIT ENERGY STAR 4:
- No
- MAXIMUM SLOPE DEGREE:
- 27
- REVERSE SWITCH LOCATION:
- Motor Housing
- RPM MEDIUM (IV)1:
- 81
- AVAILABLE FOR PURCHASE:
- YES
- ADDITIONAL INFO5:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- BLADE FINISH METHOD TYPE:
- PAPER OVERLAY
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MOTOR FINISH METHOD TYPE:
- PLATED
- NUMBER OF BLADES:
- 4
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- More Info {1}:
- 3 SPEED AC MOTOR WITH REVERSE SWITCH - FAN SPEED LIGHT AND SLEEP TIMER FUNCTIONS
- More Info {2}:
- 3533 CFM ON HIGH
- More Info {3}:
- LIMITED LIFETIME WARRANTY
- More Info {4}:
- TR500 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- More Info {5}:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- AVG ENERGY USE WATTS:
- 37
- BULB BASE:
- CONNECTOR PIN
- BULB CRI:
- 90
- BULB WATTAGE:
- 18
- CANOPY DIAMETER:
- 6.5 DIA
- CANOPY HEIGHT:
- 2.58 H''
- CASE QUANTITY:
- 1
- CURRENT DRAW HIGH:
- 0.47
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- HOUSING DIAMETER:
- 8.4
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 56
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 170
- GLASS FINISH OR STYLE:
- FROSTED
- GLASS FINISH OR STYLE:
- OPAL
