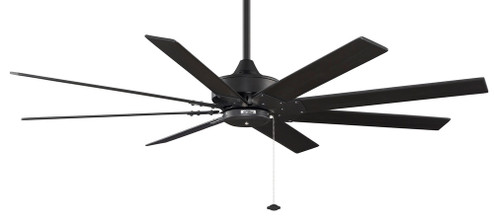

The Levon by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levons eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon is available in oil rubbed bronze finish with walnut blades and accommodates a ceiling slope up to 30 degrees. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use The Levon by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levons eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon is available in oil rubbed bronze finish with walnut blades and accommodates a ceiling slope up to 30 degrees. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''BLACK''}
- OPTION:
- Dry Rated
- FAMILY:
- Levon AC
- ADDITIONAL INFO:
- 3 speed AC motor with reverse switch
- AIR FLOW CFM:
- 5878
- AIR FLOW EFFICIENCY:
- 89
- AMPERAGE:
- 0.55
- BLADE FINISH:
- Black
- BLADE PITCH:
- 14
- BLADE SPAN:
- 63
- BLADES INCLUDED:
- 8
- CANOPY:
- 5.75 DIA X 2.57 H
- DIAMETER:
- 9.06
- DOWN ROD INCLUDED:
- 6
- ELECTRICITY USED:
- 66
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 63
- MATERIAL:
- Wood
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 105
- MOTOR SIZE:
- 188 X 25
- MOTOR TYPE:
- AC
- PULL CHAIN INCLUDED:
- Yes
- SHIP CARTON HEIGHT:
- 11.02''
- SHIP CARTON LENGTH:
- 28.62
- SHIP CARTON WIDTH:
- 12.09''
- SHIP WEIGHT:
- 26.5
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 23.8
- AIRFLOW EFFICIENCY LOW:
- 168
- AIRFLOW EFFICIENCY MEDIUM:
- 121
- AVG AIRFLOW EFFICIENCY:
- 102
- AVG CFM ENERGY:
- 4273
- AVG ENERGY USE (WATTS):
- 42
- AVG ESTIMATED YEARLY ENERGY COST:
- 12
- BLADE MATERIAL:
- Buttonwood
- BLADE SWEEP:
- 63
- CARTON CUBIC FEET:
- 2.21
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 11.02''
- CASE LENGTH:
- 28.62
- CASE WEIGHT POUNDS:
- 26.5
- CASE WIDTH:
- 12.09''
- CFM LOW:
- 2454
- CFM MEDIUM:
- 3607
- COMPATIBLE ACCESSORIES:
- CCK8002BL DR1-12BL DR1-18BL DR1-24BL DR1-36BL DR1-48BL DR1-60BL DR1-72BL DR1-CPBL SCB1-52
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CR500 CRL4WH WFR50
- COMPATIBLE LIGHT KITS:
- F404BL F423BL LK112A LK113WH LK114WBL LK124WBL LK250 LK260 LK500BL LKFL250 LKFL260
- COMPATIBLE WALL CONTROLS:
- CW5LA CW5WH CWRL4LA CWRL4WH WC1WH WC2WH WR500WH WR501WH
- CONTROL TYPE:
- Pull Chain
- CURRENT DRAW LOW:
- 0.26
- CURRENT DRAW MEDIUM:
- 0.37
- DOE CLASSIFICATION:
- LSSD
- DRY RATED:
- Yes
- LEADWIRE:
- 80
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 46
- RPM MEDIUM (IV):
- 59
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- WATTS LOW:
- 15
- WATTS MEDIUM:
- 30
- HEIGHT:
- 14.50
- WIDTH:
- 63.00
- WALL:
- YES
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- ADDITIONAL INFO1:
- 5878 CFM ON HIGH
- ADDITIONAL INFO2:
- Limited Lifetime Warranty
- ADDITIONAL INFO3:
- PULL CHAIN OPERATED
- ADDITIONAL INFO4:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO5:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- CANOPY1:
- Diameter- 6.34 Height- 2.83''
- LIGHT KIT INCLUDED:
- No
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 19
- BLADE FINISH METHOD:
- Painted
- BLADE REVERSIBLE:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CASE HEIGHT1:
- 11.93''
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 12
- CEILING TO BOTTOM (NO LK):
- 14.5
- CEILING TO BOTTOM (NO LK)1:
- 13.69
- DOE-FTC UPLOADED:
- Yes
- LEAD WIRE:
- 24 - 26
- MAXIMUM SLOPE DEGREE:
- 27
- REVERSE SWITCH LOCATION:
- Switch Housing
- VOLTAGE CYCLES:
- 60 HZ
- CEILING:
- YES
- AVAILABLE FOR PURCHASE:
- YES
- BLADE FINISH METHOD TYPE:
- PAINTED
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 8
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- RPM LOW II:
- 56
- WIDTH RANGE:
- 56'' AND OVER
- More Info {1}:
- 3 SPEED AC MOTOR WITH REVERSE SWITCH
- More Info {2}:
- 5878 CFM ON HIGH
- More Info {3}:
- LIMITED LIFETIME WARRANTY
- More Info {4}:
- PULL CHAIN OPERATED
- More Info {5}:
- WIFI OR BLUETOOTH COMPATIBLE (REQUIRED CONTROLS SOLD SEPARATELY)
- AVG ENERGY USE WATTS:
- 42
- CANOPY DIAMETER:
- 5.75 DIA
- CANOPY HEIGHT:
- 2.57 H''
- CASE QUANTITY:
- 1
- CURRENT DRAW HIGH:
- 0.55
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 6
- HOUSING DIAMETER:
- 9.06
- INCLUDED CONTROL TYPE:
- PULL CHAIN
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 66
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 105
