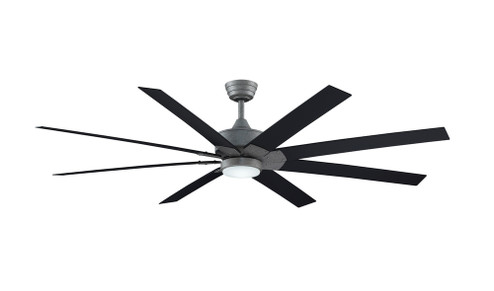

The Levon Custom by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon Custom is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon Custom will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levon Customs eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon Custom is available in multiple damp rated finishes and can accommodate a ceiling slope up to 42 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use The Levon by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levons eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon is available in oil rubbed bronze finish with walnut blades and accommodates a ceiling slope up to 30 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''GALVANIZED''}
- OPTION:
- DAMP
- FAMILY:
- Levon Custom
- ADDITIONAL INFO:
- 3 speed DC motor with reverse switch fan speed light controls sleep timerhome away fresh air an
- AIR FLOW CFM:
- 8244
- AIR FLOW EFFICIENCY:
- 270
- AMPERAGE:
- 0.4
- BLADE PITCH:
- 14
- BLADES INCLUDED:
- 8
- CANOPY:
- 5.75 DIA X 2.57 H
- DIAMETER:
- 8.49
- DOWN ROD INCLUDED:
- 6
- ELECTRICITY USED:
- 31
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 52 64 72
- MAX LENGTH:
- 72
- MAX WIDTH:
- 72''
- MOTOR FAN SPEED:
- 16
- MOTOR RPM:
- 95
- MOTOR SIZE:
- 165NM
- MOTOR TYPE:
- DC
- REMOTE CONTROL INCLUDED:
- TR205D
- SHIP CARTON HEIGHT:
- 11.3''
- SHIP CARTON LENGTH:
- 20
- SHIP CARTON WIDTH:
- 12.05''
- SHIP WEIGHT:
- 21.94
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 19.67
- AIRFLOW EFFICIENCY LOW:
- 784
- AIRFLOW EFFICIENCY MEDIUM:
- 445
- AVG AIRFLOW EFFICIENCY:
- 291
- AVG CFM ENERGY:
- 6177
- AVG ENERGY USE (WATTS):
- 21
- AVG ESTIMATED YEARLY ENERGY COST:
- 6
- CARTON CUBIC FEET:
- 1.58
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 11.3''
- CASE LENGTH:
- 20
- CASE WEIGHT POUNDS:
- 21.94
- CASE WIDTH:
- 12.05''
- CEILING:
- YES
- CFM LOW:
- 4090
- CFM MEDIUM:
- 6158
- COMPATIBLE ACCESSORIES:
- CCK8002GZ DR1-12GZ DR1-18GZ DR1-24GZ DR1-36GZ DR1-48GZ DR1-60GZ DR1-72GZ DR1-CPGZ SCB1-52
- COMPATIBLE BLADES:
- B7912N B7912WA B7912WP B7913BN B7913CYWA B7914BN B7914CYWA BPW7912BL BPW7912BN BPW7912CY BPW7912DWA BPW7912MW BPW7912N BPW7912WE BPW7912WP BPW7912WW BPW7913BL BPW7913BN
- COMPATIBLE CONTROLS:
- WFR7912
- COMPATIBLE LIGHT KITS:
- LK7912BGZ
- COMPATIBLE WALL CONTROLS:
- TW306
- CONTROL TYPE:
- Handheld
- CURRENT DRAW LOW:
- 0.08
- CURRENT DRAW MEDIUM:
- 0.21
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- FAN ENERGY STAR 5:
- Yes
- INCLUDED CONTROL:
- TR305
- LEADWIRE:
- 80
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 48
- RPM MEDIUM (IV):
- 72
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- WATTS LOW:
- 5
- WATTS MEDIUM:
- 14
- HEIGHT:
- 15.58
- WIDTH:
- 52.00
- WALL:
- YES
- FINISH:
- GRAY
- Standard Style:
- Traditional
- LIGHT KIT INCLUDED:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- DOE-FTC UPLOADED:
- Yes
- MAXIMUM SLOPE DEGREE:
- 27
- REVERSE SWITCH LOCATION:
- Control
- ADDITIONAL INFO1:
- 7880 CFM on High
- ADDITIONAL INFO2:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO3:
- ENERGY STAR MOST EFFICIENT 2020
- ADDITIONAL INFO4:
- TR205D HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
- ADDITIONAL INFO5:
- TR205D HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
- ADDITIONAL INFO6:
- Set of (5) 56 inch blades with bourbon or weathered wood finish and 18 watt LED light kit with cover
- ADDITIONAL INFO7:
- Set of (8) blades with Damp Rated optional finishes included optional 18 watt LED light kit (sold s
- ADDITIONAL INFO8:
- Set of 3 54 inch blades with multiple Wet Rated finishes included
- ADDITIONAL INFO9:
- TR205D handheld remote with CR2032 batteries included
- CANOPY1:
- Diameter- 6.34 Height- 2.83''
- DIAMETER1:
- 9.06
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 9
- CEILING TO BLADE EDGE:
- 14.4
- CEILING TO BLADE EDGE1:
- 4
- CEILING TO BOTTOM (NO LK):
- 15.58
- CEILING TO BOTTOM (NO LK)1:
- 7.58
- INCLUDED CONTROL1:
- TR33WH
- VOLTAGE CYCLES:
- 60 HZ
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 50-55''
- CEILING TO BOTTOM (WITH LK):
- 16.27
- AVAILABLE FOR PURCHASE:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- YES
- MOTOR FINISH METHOD TYPE:
- PLATED
- NUMBER OF BLADES:
- 8
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- AVG ENERGY USE WATTS:
- 21
- RPM MEDIUM IV:
- 124
- More Info {1}:
- 3 SPEED DC MOTOR WITH REVERSE SWITCH FAN SPEED LIGHT CONTROLS SLEEP TIMER HOME AWAY FRESH AIR AND SAFE EXIT
- More Info {2}:
- 8244 CFM ON HIGH
- More Info {3}:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- More Info {4}:
- ENERGY STAR MOST EFFICIENT 2022
- More Info {5}:
- TR305 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- CANOPY DIAMETER:
- 5.75 DIA
- CANOPY HEIGHT:
- 2.57 H''
- CASE QUANTITY:
- 1
- CEILING TO BOTTOM1:
- 16.27
- COMPATIBLE BLADES1:
- BPW7913CY BPW7913DWA BPW7913MW BPW7913N BPW7913WE BPW7913WP BPW7913WW BPW7914BL BPW7914BN BPW7914CY BPW7914DWA BPW7914MW BPW7914N BPW7914WE BPW7914WP BPW7914WW
- CURRENT DRAW HIGH:
- 0.4
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 6
- HOUSING DIAMETER:
- 9.06
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 42
- MAX WATT:
- 31
- NUMBER OF SPEEDS:
- 16
- RPM HIGH (VI):
- 95
