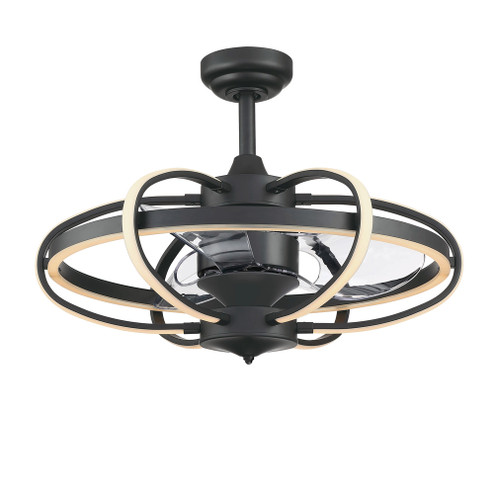

The Obvi by Fanimation is the obvious choice for uniqueness in trend and style. This ceiling fan includes a set of three clear blades and six LED side lights as well as a LED center band light with opal frosted shades. The Obvi encompasses comfort and design that is perfect for any room in the home. *Dry Rated for indoor use only *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use The Obvi by Fanimation is the obvious choice for uniqueness in trend and style. This ceiling fan includes a set of three clear blades and six LED side lights as well as a LED center band light with opal frosted shades. The Obvi encompasses comfort and design that is perfect for any room in the home. ?Dry Rated for indoor use only ?Can be controlled using the Fanimation Bluetooth fanSync app ?Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''BLACK''}
- 6 WATT LED:
- 4 Bulbs
- REQUIRED (NOT INCLUDED):
- 10 4 WATT 6 WATT CONNECTOR PIN LED BULBS
- OPTION:
- ENERGY EFFICIENT
- FAMILY:
- Obvi
- NUMBER OF BULBS:
- 6
- ADDITIONAL INFO:
- 1516 CFM on High
- AIR FLOW CFM:
- 1426
- AIR FLOW EFFICIENCY:
- 55
- AMPERAGE:
- 0.42
- BLADE FINISH:
- Clear
- BLADE PITCH:
- VARIED
- BLADES INCLUDED:
- 3
- BULB TYPE:
- LED
- CANOPY:
- 5.83 DIA X 2.17 H
- DIAMETER:
- 26.43
- DOWN ROD INCLUDED:
- 6
- ELECTRICITY USED:
- 26
- HARMONIZED CODES:
- 8414.51.3000
- KELVIN:
- 3000
- LENGTH:
- 26.43
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1370
- MATERIAL:
- Composite
- MOTOR FAN SPEED:
- 16
- MOTOR RPM:
- 382
- MOTOR SIZE:
- 153 X 12
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 15.71''
- SHIP CARTON LENGTH:
- 29.02
- SHIP CARTON WIDTH:
- 27.44''
- SHIP WEIGHT:
- 29.34
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 21.16
- AIRFLOW EFFICIENCY LOW:
- 123
- AIRFLOW EFFICIENCY MEDIUM:
- 64
- AVG AIRFLOW EFFICIENCY:
- 62
- AVG CFM ENERGY:
- 1177
- AVG ENERGY USE (WATTS):
- 19
- AVG ESTIMATED YEARLY ENERGY COST:
- 5
- BLADE REVERSIBLE:
- No
- BLADE SWEEP:
- 22
- BRAND:
- Fanimation
- CAP INCLUDED:
- No
- CARTON CUBIC FEET:
- 7.24
- CASE HEIGHT:
- 15.71''
- CASE LENGTH:
- 29.02
- CASE QUANTITY:
- 1
- CASE WEIGHT POUNDS:
- 29.34
- CASE WIDTH:
- 27.44''
- CEC UPLOADED:
- Yes
- CEILING:
- YES
- CFM LOW:
- 817
- CFM MEDIUM:
- 1310
- COMPATIBLE ACCESSORIES:
- CCK8002BL DR1-12BL DR1-18BL DR1-24BL DR1-36BL DR1-48BL DR1-60BL DR1-72BL DR1-CPBL SCK1-52BL
- COMPATIBLE WALL CONTROLS:
- TW206D
- CONTROL TYPE:
- Handheld
- CRI:
- 90
- CURRENT DRAW LOW:
- 0.11
- CURRENT DRAW MEDIUM:
- 0.32
- DOE CLASSIFICATION:
- LSSD
- DOE-FTC UPLOADED:
- Yes
- DRY RATED:
- Yes
- EXEMPT FROM DOE PROCEDURE:
- Yes
- FAN ENERGY STAR 4:
- No
- INCLUDED CONTROL:
- TR205D
- LEADWIRE:
- 54
- LIGHT KIT ENERGY STAR 4:
- No
- MAXIMUM SLOPE DEGREE:
- 27
- MOTOR FINISH METHOD TYPE:
- Painted
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- REVERSE SWITCH LOCATION:
- Control
- RPM LOW (II):
- 219
- RPM MEDIUM (IV):
- 356
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- WATTS LOW:
- 7
- WATTS MEDIUM:
- 20
- WATTS PER BULB:
- 4 6
- WALL:
- YES
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- LOCAL_CLEARANCE:
- 0
- HEIGHT:
- 19.96
- WIDTH:
- 26.43
- BLADE MATERIAL:
- Composite
- BROCHURE:
- Manufacturer Brochure
- CARTONS PER UNIT:
- 1
- HAMONIZED CODE:
- 8414.51.3000
- FINISH:
- BLACK
- STANDARD STYLE:
- TRADITIONAL
- ADDITIONAL INFO1:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO2:
- LIMITED LIFETIME WARRANTY
- ADDITIONAL INFO3:
- Set of (3) clear blades and (6) 4 watt LED side lights and 24 watt LED center band included
- ADDITIONAL INFO4:
- TR205D handheld remote with 23A battery included
- ADDITIONAL INFO5:
- Variable speed DC Motor with reverse switch
- AIR FLOW CFM1:
- 4033
- BULB TYPE1:
- 6W LED
- LUMENS / LIGHT OUTPUT1:
- 2580
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 7
- BLADE FINISH METHOD:
- Injected
- CEILING TO BLADE EDGE:
- 14.91
- CEILING TO BOTTOM:
- 19.8
- CEILING TO BOTTOM (NO LK)1:
- 51 61
- CEILING TO BOTTOM (WITH LK):
- 19.96
- VOLTAGE CYCLES:
- 60 HZ
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 25-30''
- CEILING TO BLADE EDGE1:
- 4
- AVAILABLE FOR PURCHASE:
- YES
- REMOTE CONTROL INCLUDED:
- TR205D
- BLADE FINISH METHOD TYPE:
- INJECTED
- NUMBER OF BLADES:
- 3
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 29
- IMAGE INFO:
- ''FP3050BL_1.JPG:DEFAULT''
- More Info {1}:
- CONTROL: INCLUDES A TR205D HAND-HELD REMOTE WITH TWO 3V CR2032 BATTERIES - PUSH BUTTONS CONTROL 16 FAN SPEEDS INFINITE LIGHT LEVELS FAN/LIGHT TIMER POWERING ON/OFF AND FRESH AIR REVERSE HOME AWAY SAFE EXIT MODES
- More Info {2}:
- INSTALLATION: MOUNTS TO FLAT OR MINIMALLY SLOPED CEILINGS WITH THE INCLUDED 1-IN DIAMETER X 6-IN LENGTH DOWNROD.
- More Info {3}:
- LIGHTING: INCLUDES SIX INTEGRATED 4-WATT DIMMABLE LED SIDE LIGHTS AND 24-WATT DIMMABLE LED CENTER BAND
- More Info {4}:
- LOCATION: DRY RATED FOR INDOOR USE ONLY MAKING IT IDEAL FOR SPACES LIKE BEDROOMS LIVING ROOMS KITCHENS OR OFFICES
- More Info {5}:
- OPTIONAL DOWNRODS ARE AVAILABLE IN LENGTHS UP TO 72 INCHES TO ADJUST THE FANS HEIGHT BETWEEN 7-FT TO 9-FT FROM THE FLOOR ENSURING MAXIMUM AIRFLOW''
- More Info {6}:
- POWER: THE 16-SPEED QUIET AND ENERGY EFFICIENT DC MOTOR PROVIDES AIRFLOW UP TO 1426 CFM
- AVG ENERGY USE WATTS:
- 19
- BULB BASE:
- CONNECTOR PIN
- BULB COLOR TEMP 2:
- 3000
- BULB CRI:
- 90
- BULB CRI 2:
- 90
- BULB LUMENS 2:
- 1370
- BULB MAX WATTAGE 2:
- 6
- BULB QUANTITY 2:
- 4
- BULB TYPE-2:
- 6 W LED
- BULB WATTAGE:
- 4
- CANOPY DIAMETER:
- 5.83 DIA
- CANOPY HEIGHT:
- 2.17 H''
- CURRENT DRAW HIGH:
- 0.39
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 6
- HOUSING DIAMETER:
- 26.43
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 26
- NUMBER OF SPEEDS:
- 16
- RPM HIGH (VI):
- 386
- HTTPS:
- //WWW.DROPBOX.COM/S/RU3W6VY4KN5P6IO/FP3050BL_SS.PDF:CLICK HERE TO VIEW SPEC SHEET DETAILS
- HTTPS1:
- //WWW.DROPBOX.COM/S/YHXTGJ52DJGKEET/FP3050BL_OM.PDF:CLICK HERE TO VIEW OWNERS MANUAL
- OPTION1:
- LED
- OPTION2:
- PROP 65
- BLADE SPAN:
- 22
- More Info {7}:
- SAVINGS: FEATURES A REVERSIBLE MOTOR ALLOWING YOU TO SWITCH THE DIRECTION OF YOUR FANS ROTATION AND CREATE ENERGY SAVINGS
- More Info {8}:
- WARRANTY: LIMITED LIFETIME
- CEILING TO BOTTOM (WITH LIGHT KIT):
- 19.8
- ENERGY EFFICIENT:
- YES
- INDOOR:
- YES
- LED:
- YES
- LOCATION RATING:
- DRY RATED
- MAX WATTAGE:
- 4
- MAX WATTAGE 2:
- 6
- NUMBER OF BULBS2:
- 4
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- TYPE OF BULBS2:
- LED
- WATTS HIGH:
- 26
