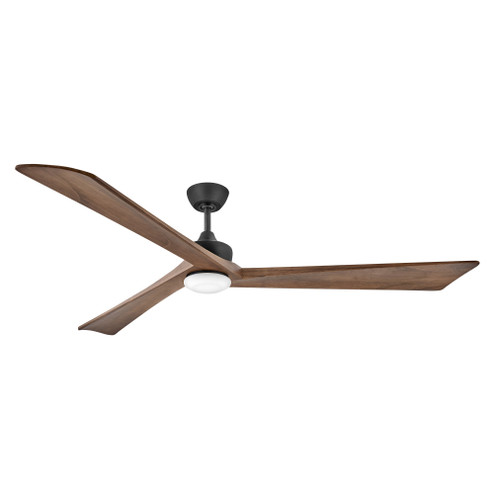

Sculpt defines modern elegance. Its solid wood blades are complemented by a clean etched opal glass, seamlessly adding the adequate amount of contemporary character. Sculpt is available in Matte Black with Walnut blades or Graphite with Driftwood blades. Sculpt is DAMP rated, making it perfect for both interior and outdoor settings.
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- OPTION:
- DAMP RATED
- GLASS:
- Etched Opal
- BULBS:
- 16 WATT LED:16 WATT LED:1
- STYLE:
- Modern
- FAMILY:
- Sculpt
- NUMBER OF BULBS:
- 1
- AIR FLOW CFM:
- 11023.00
- AIR FLOW EFFICIENCY:
- 11023
- AMPERAGE:
- 0.47
- BLADE FINISH:
- Walnut
- BLADE PITCH:
- 9
- BLADE SPAN:
- 80
- BLADES INCLUDED:
- 3
- BULB DIMMABLE:
- YES - CL TYPE DIMMER (SSL7A)
- CANOPY:
- 6 DIA. X 2.5 D
- CANOPY1:
- Width: 6''
- ELECTRICITY USED:
- 33.10
- INTRODUCTION DATE:
- 01/01/2021
- KELVIN:
- 3000
- LENGTH:
- 80.00
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1320
- MATERIAL:
- Steel
- MOTOR RPM:
- 115.0000
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 11.42''
- SHIP CARTON LENGTH:
- 44.49
- SHIP CARTON WIDTH:
- 15.75''
- SHIP WEIGHT:
- 20.29
- VENDOR SHIP METHOD:
- Parcel
- VOLTAGE:
- 120 V
- WEIGHT:
- 19.18
- WIRE INCLUDED:
- 1 X 76''
- BLADE MATERIAL:
- Wood
- BLADE OPTIONS AVAILABLE:
- NO
- BLADE REVERSIBLE:
- NO
- CEILING:
- YES
- CONTROL TYPE:
- HIRO CONTROL - 6 SPEED REVERSING
- CRI:
- 90
- DAMP RATED:
- Yes
- DUAL MOUNT:
- NO
- ENERGY COST HIGH:
- 9
- ENERGY COST LOW:
- 5
- ENERGY STAR:
- No
- F&B AUTOMATIC F&B:
- Damp Rated Finish Group - Black Single Circuit Required Title Twenty Four - 2016 Wifi control compatible
- F&B INCLUDED:
- Fan Control included 6 Spd wall
- F&B MOUNTING:
- FAN: 6'' Rod Included FAN: 7ft from floor FAN: Install Slope Ceiling
- F&B STYLE:
- Style Fan - Modern
- FAN CONTROL INCLUDED:
- Yes
- FAN CONTROL PART NUMBER:
- 980014FWH-R
- INCANDESCENT EQUIVLANCY:
- 1 x 100W
- INSTALL SLOPED CEILING:
- Yes
- LIGHT KIT ADAPTABLE:
- NO
- MOTOR NAME:
- 165 X 25
- OPERATING FREQUENCY:
- 60
- PROP 65:
- Yes
- RECEIVER INCLUDED:
- YES
- REVERSING CONTROL:
- Yes
- SINGLE POWER SWITCH:
- YES
- SLOPE DEGREE:
- 20
- TITLE 20:
- NO
- TITLE 24:
- YES
- WIFI CONTROL:
- YES
- FINISH:
- BLACK
- HEIGHT:
- 15.00
- WIDTH:
- 80.00
- STANDARD STYLE:
- MODERN
- More Info {1}:
- BLADES CONTROLS SWITCHES CAPACITORS AND HARDWARE CARRY A 1-YEAR WARRANTY
- BLADES INCLUDED1:
- YES
- LIGHT KIT INCLUDED REMOVEABLE:
- NO
- OPTIONAL ITEMS:
- 980003FWH 980015FAS-0368
- OPTIONAL REMOTE CONTROL:
- 980003FWH
- OPTIONAL WIFI MODULE ACCESSORY:
- 980015FAS-0368
- PROP 65 WARNING:
- CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- MOTOR FAN SPEED:
- 6
- REGENCY SERIES:
- NO
- AVAILABLE FOR PURCHASE:
- YES
- WARRANTY:
- FANS - MOTOR - RES999999 - COM999999 FANS - INTEGRATED LED COMPONENTS - RES1825 - COM1095 FANS - BLADES CONTROLS SWITCHES CAPACITORS HARDWARE - RES365 - COM365 INDOOR OUTDOOR FANS - BASE WARRANTY - RES730 - COM730
- AIRFLOWCFM LOW:
- 8548
- AIRFLOWEFFICIENCY LOW:
- 439
- AMPS LOW:
- 0.28
- BLADES REVERSIBLE:
- NO
- ELECTRICITYUSED LOW:
- 19
- MOTORRPM LOW:
- 83
- SAFETY RATING:
- ETL APPROVED C-US APPROVED
- SAFETY RATING1:
- ETL
- BRAND:
- HINKLEY FAN
- CANOPY DEPTH:
- 2.5
- AIRFLOWCFM AVG:
- 8548.0000
- AIRFLOWEFFICIENCY AVG:
- 439.0000
- AMPS AVG:
- 0.28
- ELECTRICITYUSED AVG:
- 19.00
- ENERGY COST AVG:
- 5
- F B INCLUDED:
- FAN CONTROL INCLUDED 6 SPD HIRO:R
- F B MOUNTING:
- FAN: 6 ROD INCLUDED FAN: 7FT FROM FLOOR FAN: INSTALL SLOPE CEILING
- MOTORRPM AVG:
- 83.0000
- QUANTITY AVAILABLE AT MANUFACTURER:
- 24
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 56'' AND OVER
- OPTION1:
- PROP 65
- OPTION2:
- TITLE 24
- OPTION3:
- TITLE 24
- BULB HOURS:
- 50000
- AIR FLOW AVERAGE:
- 439.00
- AIR FLOW EFFICIENCY AVERAGE:
- 5.00
- AMPS AVERAGE:
- 0.28
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- ENERGY USED AVERAGE:
- 19.00
- NUMBER OF BLADES:
- 3
- RPMS AVERAGE:
- 83.00
- RPMS HIGH:
- 115
- WIFI CONTROL INCLUDED:
- YES
- WIFI CONTROL OPTIONAL:
- NO
- MOTOR SIZE:
- 165 X 25
- AIR FLOW CFM1:
- 333.00
- AIR FLOW AVERAGE1:
- 8548.00
- BLADE SWEEP:
- 80
- BULBS INCLUDED:
- YES
- IMAGE INFO:
- ''''
- BULB TYPE:
- LED
- More Info {2}:
- BOLD SILHOUETTE WITH DRAMATIC DETAILS CREATES A MODERN STATEMENT
- More Info {3}:
- FAN CONTROL INCLUDED HIRO CONTROL - 6 SPEED REVERSING
- More Info {4}:
- FANS SHOULD BE INSTALLED AT A MINIMUM OF 7 FEET FROM THE FLOOR
- More Info {5}:
- FOR MORE INFORMATION ON HOW TO CONTROL YOUR CEILING FAN VIA THE HINKLEY HOME AUTOMATION APP CLICK HERE.
- More Info {6}:
- LED COMPONENTS CARRY A 5-YEAR LIMITED WARRANTY
- More Info {7}:
- MOTOR CARRIES A LIFETIME WARRANTY
- More Info {8}:
- SUITABLE FOR USE IN DAMP LOCATIONS AS DEFINED BY NEC AND CEC. MEETS UNITED STATES UL UNDERWRITERS LABORATORIES & CSA CANADIAN STANDARDS ASSOCIATION PRODUCT SAFETY STANDARDS.
- More Info {9}:
- THIS ITEM INCLUDES A 6'' DOWN ROD. OTHER VARIOUS LENGTHS OF DOWN RODS ARE AVAILABLE AND SOLD SEPARATELY TO CUSTOMIZE THE INSTALLATION HEIGHT.''
- More Info {10}:
- THIS ITEM MAY BE HUNG ON A SLOPED CEILING
- 10:
- WIFI COMPATIBLE WITH INCLUDED FAN CONTROL
- AIRFLOW AVG:
- 8548
- AVG ENERGY USE:
- 19
- BLADE TO CEILING HEIGHT:
- 12.5''
- EFFICIENCY AVG:
- 439
- EFFICIENCY HIGH:
- 333
- ENERGY USE HIGH:
- 33.1
- FLUSH MOUNT FAN:
- NO
- INCANDESCENT EQUIVALENCY:
- 100 W
- LIGHT SOURCE:
- INTEGRATED LED
- LOCATION RATING:
- DAMP RATED
- MAX WATTAGE:
- 16 W
- PROP 65 DESCRIPTION:
- CALIFORNIA PROP 65: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- RPMS AVG:
- 83
- SLOPED CEILING ADAPTABLE:
- YES
- STAND BY POWER:
- 0.2
