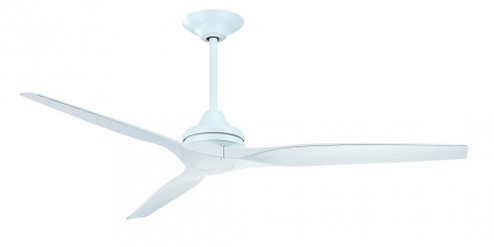

The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. *Damp rated for indoor or outdoor use. *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''MATTE WHITE''}
- AVAILABLE FOR PURCHASE:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- OPTION:
- DAMP
- FAMILY:
- SPITFIRE
- ADDITIONAL INFO:
- 12900 CFM ON HIGH
- ADDITIONAL INFO1:
- 16 SPEED DC MOTOR WITH REVERSE SWITCH FAN SPEED LIGHT CONTROLS FRESH AIR SAFE EXIT SLEEP TIMER AND HOME AWAY FEATURES
- ADDITIONAL INFO2:
- CHINA
- ADDITIONAL INFO3:
- COMPATIBLE WITH MOST SMART HOME DEVICES (RECQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO4:
- ENERGY STAR MOST EFFICIENT 2022
- ADDITIONAL INFO5:
- TR305 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- ADDITIONAL INFO6:
- TR305 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- AIR FLOW CFM:
- 12900
- AIR FLOW EFFICIENCY:
- 386
- AMPERAGE:
- 0.47
- CANOPY:
- 8.19 DIA X 2.2 H
- DIAMETER:
- 8.07
- DOWN ROD INCLUDED:
- 12
- ELECTRICITY USED:
- 33
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 64 72 84 96
- LIGHT KIT INCLUDED:
- NO
- MAX LENGTH:
- 96
- MAX WIDTH:
- 96''
- MOTOR FAN SPEED:
- 16
- MOTOR RPM:
- 112
- MOTOR SIZE:
- 153 X 25
- MOTOR TYPE:
- DC
- REMOTE CONTROL INCLUDED:
- TR305
- SHIP CARTON HEIGHT:
- 10.94''
- SHIP CARTON LENGTH:
- 14.37
- SHIP CARTON WIDTH:
- 10.43''
- SHIP WEIGHT:
- 15.61
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 14.18
- BLADE PITCH DEGREES:
- 14
- CAP INCLUDED:
- NO
- CARTON CUBIC FEET:
- 0.95
- CASE HEIGHT:
- 10.94''
- CASE LENGTH:
- 14.37
- CASE QUANTITY:
- 1
- CASE WEIGHT POUNDS:
- 15.61
- CASE WIDTH:
- 10.43''
- CEILING TO BLADE EDGE:
- 19.42
- CEILING TO BOTTOM:
- 19.42
- CEILING TO BOTTOM1:
- 21.08
- DAMP RATED:
- YES
- INCLUDED CONTROL:
- TR305
- LEADWIRE:
- 80
- MAXIMUM SLOPE DEGREE:
- 19
- MOTOR FINISH METHOD:
- PAINTED
- MOTOR REVERSIBLE:
- YES
- NUMBER OF BLADES:
- 3
- REVERSE SWITCH LOCATION:
- CONTROL
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- CEILING:
- YES
- FINISH:
- WHITE
- HEIGHT:
- 21.08
- HEIGHT RANGE:
- 20-25''
- WIDTH:
- 64.00
- WIDTH RANGE:
- 56'' AND OVER
- STANDARD STYLE:
- TRADITIONAL
- More Info {1}:
- 12900 CFM ON HIGH
- More Info {2}:
- 16 SPEED DC MOTOR WITH REVERSE SWITCH FAN SPEED LIGHT CONTROLS FRESH AIR SAFE EXIT SLEEP TIMER AND HOME AWAY FEATURES
- More Info {3}:
- COMPATIBLE WITH MOST SMART HOME DEVICES (RECQUIRED CONTROLS SOLD SEPARATELY)
- More Info {4}:
- ENERGY STAR MOST EFFICIENT 2022
- More Info {5}:
- TR305 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- AIRFLOW EFFICIENCY LOW:
- 1049
- AIRFLOW EFFICIENCY MEDIUM:
- 880
- AVG AIRFLOW EFFICIENCY:
- 376
- AVG CFM ENERGY:
- 7429
- AVG ENERGY USE WATTS:
- 20
- AVG ESTIMATED YEARLY ENERGY COST:
- 6
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 9
- CANOPY DIAMETER:
- 8.19 DIA
- CANOPY HEIGHT:
- 2.2 H''
- CEC UPLOADED:
- YES
- CFM LOW:
- 2958
- CFM MEDIUM:
- 7355
- COMPATIBLE ACCESSORIES:
- CCK6721MW DR1-12MW DR1-18MW DR1-24MW DR1-36MW DR1-48MW DR1-60MW DR1-72MW DR1-CPMW SCK1-52MW
- COMPATIBLE BLADES:
- B6720-64BL B6720-64BN B6720-64DF B6720-64DWA B6720-64MW B6720-64N B6720-64WE B6720-64WK B6720-64WW B6720-72BL B6720-72BN B6720-72DF B6720-72DWA B6720-72MW B6720-72N B6720-72WE B6720-72WK
- COMPATIBLE BLADES1:
- B6720-72WW B6720-84BL B6720-84BN B6720-84DF B6720-84DWA B6720-84MW B6720-84N B6720-84WE B6720-84WK B6720-84WW B6720-96BL B6720-96BN B6720-96DF B6720-96DWA B6720-96MW B6720-96N B6720-96WE B6720-96WK B6720-96WW
- COMPATIBLE LIGHT KITS:
- LK6721BDCMW
- COMPATIBLE WALL CONTROLS:
- TW306
- CURRENT DRAW HIGH:
- 0.47
- CURRENT DRAW LOW:
- 0.06
- CURRENT DRAW MEDIUM:
- 0.14
- DOE CLASSIFICATION:
- LSSD
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 12
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR:
- YES
- HOUSING DIAMETER:
- 8.07
- LIGHT KIT ENERGY STAR:
- YES
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 33
- NUMBER OF SPEEDS:
- 16
- REGULATED PRODUCT:
- YES
- RPM HIGH (VI):
- 112
- RPM LOW (II):
- 29
- RPM MEDIUM (IV):
- 67
- WATTS LOW:
- 3
- WATTS MEDIUM:
- 8
- WALL:
- YES
- INCLUDED CONTROL TYPE:
- HANDHELD
