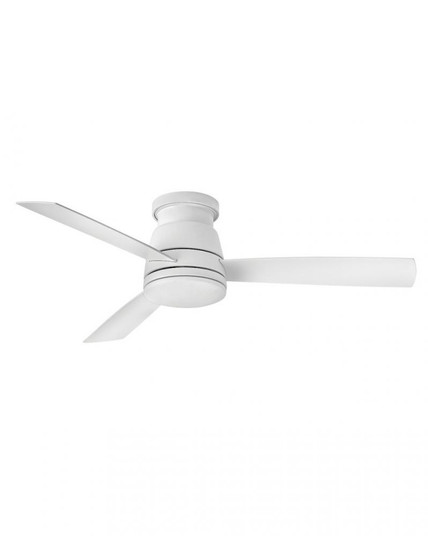

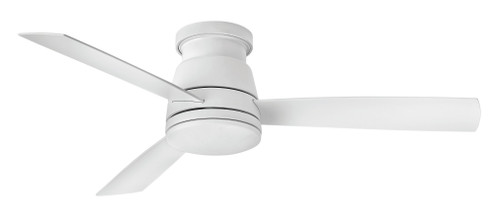

Trey features a sleek flush mount design that packs a powerful punch. Its transitional style comes equipped with robust blades that seamlessly pair performance and precision. Trey is offered in versatile Brushed Nickel, Metallic Matte Bronze and Matte White finish options, and its integrated LED and DC motor technology deliver excellent energy efficiency. A timeless etched opal glass completes the look for a refined appearance. Trey is so versatile, it can be used for both indoor and outdoor spaces.
- FINISH:
- WHITE
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- OPTION:
- PROP 65
- GLASS:
- Etched Opal
- BULBS:
- 16 WATT LED:16 WATT LED:1
- STYLE:
- Transitional
- FAMILY:
- TREY
- NUMBER OF BULBS:
- 1
- AIR FLOW CFM:
- 200.00
- AIR FLOW EFFICIENCY:
- 4827
- AMPERAGE:
- 0.33
- BLADE FINISH:
- Matte White
- BLADE PITCH:
- 20
- BLADE SPAN:
- 52
- BLADES INCLUDED:
- 3
- BULB DIMMABLE:
- YES - CL TYPE DIMMER (SSL7A)
- CANOPY:
- 7.75 DIA.
- CANOPY1:
- Width: 7.75''
- ELECTRICITY USED:
- 24.20
- INTRODUCTION DATE:
- 01/01/2020
- KELVIN:
- 3000
- LENGTH:
- 52.00
- LIGHT KIT INCLUDED:
- Yes
- LUMENS / LIGHT OUTPUT:
- 1320
- MATERIAL:
- Aluminum
- MOTOR RPM:
- 169.0000
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 12.5''
- SHIP CARTON LENGTH:
- 26
- SHIP CARTON WIDTH:
- 12''
- SHIP WEIGHT:
- 26.5
- VENDOR SHIP METHOD:
- Parcel
- VOLTAGE:
- 120 V
- WEIGHT:
- 24.5
- WIRE INCLUDED:
- 1 X 8''
- BLADE MATERIAL:
- Composite
- BLADE OPTIONS AVAILABLE:
- NO
- BLADE REVERSIBLE:
- NO
- CEILING:
- YES
- CONTROL TYPE:
- HIRO CONTROL - 6 SPEED REVERSING
- CRI:
- 90
- DUAL MOUNT:
- NO
- ENERGY COST HIGH:
- 7
- ENERGY COST LOW:
- 4
- ENERGY STAR:
- No
- F&B AUTOMATIC F&B:
- Finish Group - White Single Circuit Required Title Twenty Four - 2016 Wet Rated Wifi control compatible
- F&B INCLUDED:
- Fan Control included 6 Spd wall
- F&B MOUNTING:
- FAN: 7ft from floor
- F&B STYLE:
- Style Fan - Transitional
- FAN CONTROL INCLUDED:
- Yes
- FAN CONTROL PART NUMBER:
- 980014FWH-R
- INCANDESCENT EQUIVLANCY:
- 1 x 100W
- INSTALL SLOPED CEILING:
- NO
- LIGHT KIT ADAPTABLE:
- NO
- MOTOR NAME:
- 153 X 10
- OPERATING FREQUENCY:
- 60
- PROP 65:
- Yes
- RECEIVER INCLUDED:
- YES
- REVERSING CONTROL:
- Yes
- SINGLE POWER SWITCH:
- YES
- TITLE 20:
- NO
- TITLE 24:
- YES
- WET RATED:
- Yes
- WIFI CONTROL:
- YES
- HEIGHT:
- 11.75
- WIDTH:
- 52.00
- Standard Style:
- Transitional
- More Info {1}:
- BLADES CONTROLS SWITCHES CAPACITORS AND HARDWARE CARRY A 1-YEAR WARRANTY
- BLADES INCLUDED1:
- YES
- LIGHT KIT INCLUDED REMOVEABLE:
- NO
- OPTIONAL ITEMS:
- 932027FMW
- OPTIONAL LIGHT KIT COVER:
- 932027FMW
- OPTIONAL REMOTE CONTROL:
- 980003FWH
- OPTIONAL WIFI MODULE ACCESSORY:
- 980015FAS-027
- PROP 65 WARNING:
- CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- WIDTH RANGE:
- 50-55''
- MOTOR FAN SPEED:
- 6
- REGENCY SERIES:
- NO
- AVAILABLE FOR PURCHASE:
- NO
- WARRANTY:
- FANS - MOTOR - RES999999 - COM999999 FANS - INTEGRATED LED COMPONENTS - RES1825 - COM1095 FANS - BLADES CONTROLS SWITCHES CAPACITORS HARDWARE - RES365 - COM365 INDOOR OUTDOOR FANS - BASE WARRANTY - RES730 - COM730
- AIRFLOWCFM LOW:
- 3120
- AIRFLOWEFFICIENCY LOW:
- 205
- AMPS LOW:
- 0.19
- BLADES REVERSIBLE:
- NO
- ELECTRICITYUSED LOW:
- 15
- MOTORRPM LOW:
- 108
- SAFETY RATING:
- UL APPROVED C-US APPROVED
- SAFETY RATING1:
- UL
- BRAND:
- HINKLEY FAN
- ELECTRICITYUSED AVG:
- 15.00
- AIRFLOWCFM AVG:
- 3120.0000
- AIRFLOWEFFICIENCY AVG:
- 205.0000
- AMPS AVG:
- 0.19
- ENERGY COST AVG:
- 4
- F B INCLUDED:
- FAN CONTROL INCLUDED 6 SPD HIRO:R
- F B MOUNTING:
- FAN: 7FT FROM FLOOR
- MOTORRPM AVG:
- 108.0000
- QUANTITY AVAILABLE AT MANUFACTURER:
- 0
- OPTION1:
- TITLE 24
- OPTION2:
- WET RATED
- OPTION3:
- WET RATED
- BULB HOURS:
- 50000
- AIR FLOW AVERAGE:
- 205.00
- AIR FLOW EFFICIENCY AVERAGE:
- 4.00
- AMPS AVERAGE:
- 0.19
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- ENERGY USED AVERAGE:
- 15.00
- NUMBER OF BLADES:
- 3
- RPMS AVERAGE:
- 108.00
- RPMS HIGH:
- 169
- WIFI CONTROL INCLUDED:
- YES
- WIFI CONTROL OPTIONAL:
- NO
- MOTOR SIZE:
- 153 X 10
- AIR FLOW CFM1:
- 4827.00
- AIR FLOW AVERAGE1:
- 3120.00
- BLADE SWEEP:
- 52
- BULBS INCLUDED:
- YES
- IMAGE INFO:
- ''''
- BULB TYPE:
- LED
- More Info {2}:
- FAN CONTROL INCLUDED HIRO CONTROL - 6 SPEED REVERSING
- More Info {3}:
- FANS SHOULD BE INSTALLED AT A MINIMUM OF 7 FEET FROM THE FLOOR
- More Info {4}:
- FOR MORE INFORMATION ON HOW TO CONTROL YOUR CEILING FAN VIA THE HINKLEY HOME AUTOMATION APP CLICK HERE.
- More Info {5}:
- LED COMPONENTS CARRY A 5-YEAR LIMITED WARRANTY
- More Info {6}:
- MERGING THE BEST OF TRADITIONAL AND MODERN ELEMENTS WITH A SOPHISTICATED AND STREAMLINED LOOK
- More Info {7}:
- MOTOR CARRIES A LIFETIME WARRANTY
- More Info {8}:
- SUITABLE FOR USE IN WET (OUTDOOR DIRECT RAIN) LOCATIONS AS DEFINED BY NEC AND CEC. MEETS UNITED STATES UL UNDERWRITERS LABORATORIES & CSA CANADIAN STANDARDS ASSOCIATION PRODUCT SAFETY STANDARDS
- More Info {9}:
- WIFI COMPATIBLE WITH INCLUDED FAN CONTROL
- AIRFLOW AVG:
- 3120
- AVG ENERGY USE:
- 15
- BLADE TO CEILING HEIGHT:
- 8.25''
- EFFICIENCY AVG:
- 205
- EFFICIENCY HIGH:
- 200
- ENERGY USE HIGH:
- 24.2
- FLUSH MOUNT FAN:
- YES
- INCANDESCENT EQUIVALENCY:
- 100 W
- LIGHT SOURCE:
- INTEGRATED LED
- LOCATION RATING:
- WET RATED
- MAX WATTAGE:
- 16 W
- PROP 65 DESCRIPTION:
- CALIFORNIA PROP 65: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- RPMS AVG:
- 108
- SLOPED CEILING ADAPTABLE:
- NO
- STAND BY POWER:
- 0.2
