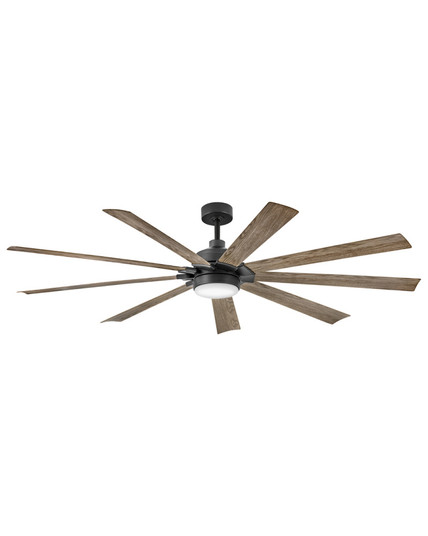

Turbine is a robust nine-blade fan, offering a clean look and excellent breeze. Its sleek blades accentuate all spaces, available in a variety of finishes. Complemented by a beautiful etched opal glass, Turbine boasts modern functionality. Versatile in style and form, Turbine appeals to both interior and outdoor living spaces.
- AVAILABLE FOR PURCHASE:
- YES
- LOCAL_ON_DISPLAY:
- 0
- ON DISPLAY IN SHOWROOM:
- No
- LOCAL_COUNT_ON_DISPLAY:
- 0
- LOCAL_SALE:
- 0
- LOCAL_COUNT_SALE:
- 0
- LOCAL_IN_STOCK:
- 0
- IN STOCK IN SHOWROOM:
- No
- LOCAL_COUNT-IN_STOCK:
- 0
- LOCAL_CLEARANCE:
- 0
- LOCAL_COUNT_CLEARANCE:
- 0
- OPTION:
- PROP 65
- GLASS:
- ETCHED OPAL
- STYLE:
- MODERN
- NUMBER OF BULBS:
- 2
- BLADE FINISH:
- DRIFTWOOD
- BLADE PITCH:
- 13
- BLADE SPAN:
- 80
- BLADES INCLUDED:
- 9
- BULB DIMMABLE:
- YES - CL TYPE DIMMER (SSL7A)
- CANOPY:
- 6 DIA. X 2.5 D
- INTRODUCTION DATE:
- 01/01/2022
- KELVIN:
- 3000
- LIGHT KIT INCLUDED:
- YES
- LUMENS / LIGHT OUTPUT:
- 2000
- MATERIAL:
- STEEL
- MOTOR FAN SPEED:
- 6
- MOTOR TYPE:
- DC
- SHIP CARTON HEIGHT:
- 13''
- SHIP WEIGHT:
- 42
- VENDOR SHIP METHOD:
- PARCEL
- VOLTAGE:
- 120 V
- BLADE MATERIAL:
- COMPOSITE
- BLADE OPTIONS AVAILABLE:
- NO
- BLADES REVERSIBLE:
- NO
- BRAND:
- HINKLEY FAN
- CANOPY DEPTH:
- 2.5
- CEILING:
- YES
- CRI:
- 90
- DUAL MOUNT:
- NO
- ENERGY COST HIGH:
- 10
- FAN CONTROL INCLUDED:
- YES
- INCANDESCENT EQUIVLANCY:
- 2 X 75W
- INSTALL SLOPED CEILING:
- YES
- LIGHT KIT ADAPTABLE:
- NO
- LIGHT KIT INCLUDED REMOVEABLE:
- YES
- OPERATING FREQUENCY:
- 60
- OPTIONAL REMOTE CONTROL:
- 980003FWH
- PROP 65:
- YES
- PROP 65 WARNING:
- CALIFORNIA PROP 65: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- RECEIVER INCLUDED:
- YES
- REVERSING CONTROL:
- YES
- SAFETY RATING:
- UL APPROVED C-US APPROVED
- SAFETY RATING1:
- UL
- SINGLE POWER SWITCH:
- NO
- SLOPE DEGREE:
- 20
- TITLE 24:
- YES
- WET RATED:
- YES
- WIFI CONTROL:
- YES
- FINISH:
- BLACK
- HEIGHT:
- 17.50
- WIDTH:
- 80.00
- FAMILY:
- TURBINE
- AIR FLOW CFM:
- 12944.00
- AIR FLOW EFFICIENCY:
- 12944
- AMPERAGE:
- 0.47
- BLADES INCLUDED1:
- YES
- ELECTRICITY USED:
- 36.00
- MOTOR RPM:
- 97.0000
- SHIP CARTON LENGTH:
- 13
- SHIP CARTON WIDTH:
- 38''
- WEIGHT:
- 38
- AIRFLOWCFM AVG:
- 8634.0000
- AIRFLOWEFFICIENCY AVG:
- 337.0000
- AMPS AVG:
- 0.27
- CONTROL TYPE:
- HIRO CONTROL - 6 SPEED REVERSING
- ELECTRICITYUSED AVG:
- 26.00
- ENERGY COST AVG:
- 7
- F B FEATURE:
- FAN: DC MOTOR
- F B INCLUDED:
- FAN CONTROL INCLUDED 6 SPD HIRO:R
- F B MOUNTING:
- FAN: 6 ROD INCLUDED FAN: 7FT FROM FLOOR FAN: INSTALL SLOPE CEILING
- FAN CONTROL PART NUMBER:
- 980014FWH-R
- MOTOR NAME:
- DC-168*30NS
- MOTORRPM AVG:
- 63.0000
- OPTIONAL ITEMS:
- 980003FWH 980013FAS
- OPTIONAL WALL CONTROL:
- 980013FAS
- WALL:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 57
- STANDARD STYLE:
- MODERN
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 56'' AND OVER
- BULBS:
- 24 WATT LED:24 WATT LED:1
- OPTION1:
- TITLE 24
- OPTION2:
- WET RATED
- OPTION3:
- WET RATED
- BULB HOURS:
- 50000
- LENGTH:
- 80.00
- AIR FLOW AVERAGE:
- 337.00
- AIR FLOW EFFICIENCY AVERAGE:
- 7.00
- AMPS AVERAGE:
- 0.27
- BULB CRI:
- 90
- BULB INCLUDED:
- YES
- ENERGY USED AVERAGE:
- 26.00
- NUMBER OF BLADES:
- 9
- RPMS AVERAGE:
- 63.00
- RPMS HIGH:
- 97
- WIFI CONTROL INCLUDED:
- YES
- WIFI CONTROL OPTIONAL:
- NO
- MOTOR SIZE:
- DC-168 X 30NS
- AIR FLOW CFM1:
- 360.00
- AIR FLOW AVERAGE1:
- 8634.00
- BLADE SWEEP:
- 80
- BULBS INCLUDED:
- YES
- IMAGE INFO:
- ''''
- BULB TYPE:
- LED
- More Info {1}:
- BLADES CONTROLS SWITCHES CAPACITORS AND HARDWARE CARRY A 1-YEAR WARRANTY
- More Info {2}:
- BOLD SILHOUETTE WITH DRAMATIC DETAILS CREATES A MODERN STATEMENT
- More Info {3}:
- FAN CONTROL INCLUDED HIRO CONTROL - 6 SPEED REVERSING
- More Info {4}:
- FANS SHOULD BE INSTALLED AT A MINIMUM OF 7 FEET FROM THE FLOOR
- More Info {5}:
- FOR MORE INFORMATION ON HOW TO CONTROL YOUR CEILING FAN VIA THE HINKLEY HOME AUTOMATION APP CLICK HERE.
- More Info {6}:
- LED COMPONENTS CARRY A 5-YEAR LIMITED WARRANTY
- More Info {7}:
- MOTOR CARRIES A LIFETIME WARRANTY
- More Info {8}:
- POWERED BY A HIGHLY EFFICIENT AND QUIET DC MOTOR
- More Info {9}:
- SUITABLE FOR USE IN WET (OUTDOOR DIRECT RAIN) LOCATIONS AS DEFINED BY NEC AND CEC. MEETS UNITED STATES UL UNDERWRITERS LABORATORIES & CSA CANADIAN STANDARDS ASSOCIATION PRODUCT SAFETY STANDARDS
- More Info {10}:
- THIS ITEM INCLUDES A 6'' DOWN ROD. OTHER VARIOUS LENGTHS OF DOWN RODS ARE AVAILABLE AND SOLD SEPARATELY TO CUSTOMIZE THE INSTALLATION HEIGHT.''
- 10:
- THIS ITEM INCLUDES A LIGHT KIT COVER
- 11:
- THIS ITEM MAY BE HUNG ON A SLOPED CEILING
- 12:
- WIFI COMPATIBLE WITH INCLUDED FAN CONTROL
- AIRFLOW AVG:
- 8634
- AVG ENERGY USE:
- 26
- BLADE TO CEILING HEIGHT:
- 13''
- EFFICIENCY AVG:
- 337
- EFFICIENCY HIGH:
- 360
- ENERGY USE HIGH:
- 36
- FLUSH MOUNT FAN:
- NO
- INCANDESCENT EQUIVALENCY:
- 75 W
- LIGHT SOURCE:
- INTEGRATED LED
- LOCATION RATING:
- WET RATED
- MAX WATTAGE:
- 24 W
- PROP 65 DESCRIPTION:
- CALIFORNIA PROP 65: WARNING: THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH IS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- RPMS AVG:
- 63
- SLOPED CEILING ADAPTABLE:
- YES
- STAND BY POWER:
- 0.2
- STYLE-2:
- INDUSTRIAL
