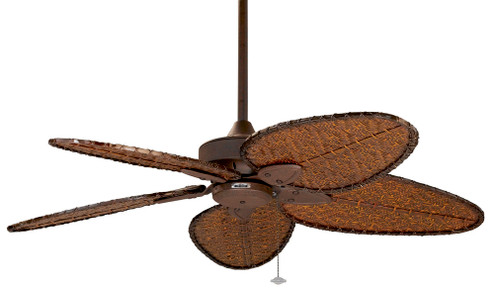

Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointe?s three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *The Antique Brass finish is Dry Rated for indoor use, while the oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''RUST''}
- OPTION:
- ENERGY EFFICIENT
- FAMILY:
- WINDPOINTE
- ADDITIONAL INFO:
- 3 speed AC motor with reverse switch
- AIR FLOW CFM:
- 3177
- AIR FLOW EFFICIENCY:
- 66
- AMPERAGE:
- 0.4
- BLADE FINISH:
- Narrow Oval Antique Bamboo
- BLADE PITCH:
- 18
- BLADE SPAN:
- 52
- BLADES INCLUDED:
- 5
- CANOPY:
- 5.75 DIA X 2.57 H
- DIAMETER:
- 9.06
- DOWN ROD INCLUDED:
- 6
- ELECTRICITY USED:
- 48
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 52
- MATERIAL:
- Woven Bamboo
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 114
- MOTOR SIZE:
- 188 X 25
- MOTOR TYPE:
- AC
- PULL CHAIN INCLUDED:
- Yes
- SHIP CARTON HEIGHT:
- 11.93''
- SHIP CARTON LENGTH:
- 24.13
- SHIP CARTON WIDTH:
- 13.15''
- SHIP WEIGHT:
- 30
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 24.9
- WIRE INCLUDED:
- 80''
- AIRFLOW EFFICIENCY LOW:
- 113
- AIRFLOW EFFICIENCY MEDIUM:
- 62
- AVG AIRFLOW EFFICIENCY:
- 74
- AVG CFM ENERGY:
- 2374
- AVG ENERGY USE (WATTS):
- 32
- AVG ESTIMATED YEARLY ENERGY COST:
- 9
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 13
- BLADE FINISH METHOD:
- Painted
- BLADE MATERIAL:
- Woven Bamboo
- BLADE SWEEP:
- 52
- CARTON CUBIC FEET:
- 2.19
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 11.93''
- CASE LENGTH:
- 24.13
- CASE WEIGHT POUNDS:
- 32.65
- CASE WIDTH:
- 13.15''
- CFM LOW:
- 1566
- CFM MEDIUM:
- 1867
- COMPATIBLE ACCESSORIES:
- CCK8002RS DR1-12RS DR1-18RS DR1-24RS DR1-36RS DR1-48RS DR1-60RS DR1-72RS DR1-CPRS SCB1-52
- COMPATIBLE BLADES:
- B5131DC B5131RC B5132DC B5132RC B5133CYWA B5133MOMP B5133TKMH B5260WA B5270WA B5280WA B5300WA B5310WA B5330WA B5340WA B5350WA B6030CY B6030MH B6030MP B6030TK B6060WA B6070WA B6080WA B6110WA B6130WA B6131DC B6131RC
- COMPATIBLE CONTROLS:
- BTCR9 BTR9 CR500 CRL4WH WFR50
- COMPATIBLE LIGHT KITS:
- F401OB F404OB F423OB LK112A LK113WH LK114AOB LK114WOB LK122A LK124AOB LK124WOB LK250 LK500OB LKFL250 LKFL260 LKLP101OB LKLP102OB LKLP112AOB
- COMPATIBLE WALL CONTROLS:
- CW5LA CW5WH CWRL4LA CWRL4WH WC1WH WC2WH WR500WH WR501WH
- CONTROL TYPE:
- Pull Chain
- CURRENT DRAW LOW:
- 0.22
- CURRENT DRAW MEDIUM:
- 0.32
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- IP RATING:
- IP20
- LEADWIRE:
- 80
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 59
- RPM MEDIUM (IV):
- 81
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WATTS LOW:
- 14
- WATTS MEDIUM:
- 30
- HEIGHT:
- 14.50
- WIDTH:
- 52.00
- WIDTH RANGE:
- 50-55''
- WALL:
- YES
- FINISH:
- RUST
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- CONTEMPORARY
- ADDITIONAL INFO1:
- 3177 CFM ON HIGH
- ADDITIONAL INFO2:
- COMPATIBLE WITH FANIMATION BLUETOOTH FANSYNC AND MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEP
- ADDITIONAL INFO3:
- LIGHT KIT ADAPTABLE (SOLD SEPARATELY)
- ADDITIONAL INFO4:
- PULL CHAIN OPERATED
- ADDITIONAL INFO5:
- SET OF 5 NARROW OVAL BLADES WITH MULTIPLE FINISH OPTIONS INCLUDED
- ADDITIONAL INFO6:
- Pull Chain Operated
- ADDITIONAL INFO7:
- Set of 5 blades included with multiple finish options
- AIR FLOW CFM1:
- 3312
- CANOPY1:
- Diameter- 6.34 Height- 2.83''
- LIGHT KIT INCLUDED:
- No
- AIRFLOW EFFICIENCY LOW1:
- 150
- BLADE REVERSIBLE:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- CEILING TO BOTTOM (NO LK):
- 14.5
- CEILING TO BOTTOM (NO LK)1:
- 13.69
- COMPATIBLE LIGHT KITS1:
- F401RS F404RS F423RS LK112A LK113WH LK114ARS LK114WRS LK122A LK124ARS LK124WRS LK250 LK500RS LKFL250 LKFL260 LKLP101RS LKLP102RS LKLP112ARS
- DOE-FTC UPLOADED:
- Yes
- MAXIMUM SLOPE DEGREE:
- 27
- MOTOR FINISH METHOD:
- Plated
- REVERSE SWITCH LOCATION:
- Switch Housing
- CEILING:
- YES
- AVAILABLE FOR PURCHASE:
- YES
- BLADE FINISH METHOD TYPE:
- PAINTED
- CEILING TO BLADE EDGE:
- 14
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 5
- PRODUCT CERTIFICATION LABEL:
- UL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 116
- More Info {1}:
- CONTROL: INCLUDES A PULL CHAIN TO POWER FAN AND ADJUST FAN SPEEDS
- More Info {2}:
- INSTALLATION: MOUNTS TO FLAT OR MINIMALLY SLOPED CEILINGS WITH THE INCLUDED 1-IN DIAMETER X 6-IN LENGTH DOWNROD.
- More Info {3}:
- LIGHTING: COMPATIBLE WITH EITHER A LIGHT FITTER OR LIGHT KIT FOR VERSATILITY (LIGHT KIT SOLD SEPARATELY)
- More Info {4}:
- LOCATION: DAMP RATED FOR USE IN INDOOR AND OUTDOOR COVERED SPACES EXPOSED TO MOISTURE AND HUMIDITY
- More Info {5}:
- OPTIONAL DOWNRODS ARE AVAILABLE IN LENGTHS UP TO 72 INCHES TO ADJUST THE FANS HEIGHT BETWEEN 7-FT TO 9-FT FROM THE FLOOR ENSURING MAXIMUM AIRFLOW''
- AVG ENERGY USE WATTS:
- 32
- CANOPY DIAMETER:
- 5.75 DIA
- CANOPY HEIGHT:
- 2.57 H''
- CASE QUANTITY:
- 1
- COMPATIBLE BLADES1:
- B6132DC B6132RC B6133TKMH BPD1A BPD4A BPD4BL BPD4MW BPD5A BPP1BR BPP1TN BPP4BR BPP4GR BPP4TN BPW6030CY BPW6030MH BPW6030MP BPW6030TK BPW6090DNA ISD1A ISD1C ISD2A ISD4A ISD4C ISD7A ISP1 ISP1RB ISP2 ISP4 ISP4RB I...
- CURRENT DRAW HIGH:
- 0.4
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 6
- HOUSING DIAMETER:
- 9.06
- INCLUDED CONTROL TYPE:
- PULL CHAIN
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 48
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 114
- IMAGE INFO:
- 5/5/2025 14:41
- OPTION1:
- ENERGY STAR
- OPTION2:
- OUTDOOR
- OPTION3:
- PROP 65
- More Info {6}:
- POWER: THE 3-SPEED ENERGY EFFICIENT AC MOTOR PROVIDES AIRFLOW UP TO 3177 CFM
- More Info {7}:
- SAVINGS: FEATURES A REVERSIBLE MOTOR ALLOWING YOU TO SWITCH THE DIRECTION OF YOUR FANS ROTATION AND CREATE ENERGY SAVINGS
- More Info {8}:
- TECHNOLOGY: COMPATIBLE WITH FANIMATION WIFI FANSYNC AND MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- More Info {9}:
- WARRANTY: LIMITED LIFETIME
- CEILING TO BOTTOM (NO LIGHT KIT):
- 14.5
- ENERGY EFFICIENT:
- YES
- ENERGY STAR:
- YES
- INDOOR:
- YES
- LOCATION RATING:
- DAMP RATED
- OUTDOOR:
- YES
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- WATTS HIGH:
- 48
