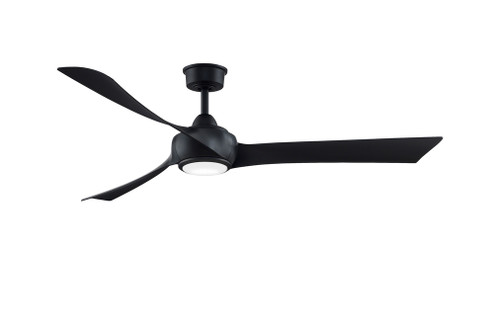

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''BLACK''}
- OPTION:
- DAMP
- FAMILY:
- Wrap Custom
- ADDITIONAL INFO:
- 10846 CFM on High
- BLADE PITCH:
- Varied
- BLADES INCLUDED:
- 3
- CANOPY:
- 6.14 DIA X 2.55 H
- DIAMETER:
- 8.88
- DOWN ROD INCLUDED:
- 8
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 64 72 84
- MAX LENGTH:
- 84
- MAX WIDTH:
- 84''
- MOTOR FAN SPEED:
- 16
- MOTOR SIZE:
- 153 x 25
- MOTOR TYPE:
- DC
- REMOTE CONTROL INCLUDED:
- TR205D
- SHIP CARTON HEIGHT:
- 7.6''
- SHIP CARTON LENGTH:
- 16.34
- SHIP CARTON WIDTH:
- 8.86''
- SHIP WEIGHT:
- 16.1
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 13.3
- AVG AIRFLOW EFFICIENCY:
- 420
- AVG CFM ENERGY:
- 8762
- AVG ENERGY USE (WATTS):
- 21
- AVG ESTIMATED YEARLY ENERGY COST:
- 6
- CAP INCLUDED:
- Yes
- CARTON CUBIC FEET:
- 0.64
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 7.6''
- CASE LENGTH:
- 16.34
- CASE WEIGHT POUNDS:
- 16.1
- CASE WIDTH:
- 8.86''
- CEILING:
- YES
- COMPATIBLE ACCESSORIES:
- CCK8002BL DR1-12BL DR1-18BL DR1-24BL DR1-36BL DR1-48BL DR1-60BL DR1-72BL DR1-CPBL SCB1-52
- COMPATIBLE BLADES:
- B7998-96BLW B7998-96SLW
- COMPATIBLE LIGHT KITS:
- LK8530BL
- COMPATIBLE WALL CONTROLS:
- TW306
- CONTROL TYPE:
- Handheld
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- FAN ENERGY STAR 5:
- Yes
- INCLUDED CONTROL:
- TR305
- LEADWIRE:
- 80
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- HEIGHT:
- 15.96
- WIDTH:
- 64.00
- WALL:
- YES
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- AIR FLOW CFM:
- 11206
- AIR FLOW EFFICIENCY:
- 366
- AMPERAGE:
- 0.43
- ELECTRICITY USED:
- 31
- LIGHT KIT INCLUDED:
- No
- MOTOR RPM:
- 81
- AIRFLOW EFFICIENCY LOW:
- 1172
- AIRFLOW EFFICIENCY MEDIUM:
- 503
- BROCHURE:
- Manufacturer Brochure
- CEC UPLOADED:
- Yes
- CFM LOW:
- 3516
- CFM MEDIUM:
- 7859
- CURRENT DRAW LOW:
- 0.05
- CURRENT DRAW MEDIUM:
- 0.15
- DOE-FTC UPLOADED:
- Yes
- MAXIMUM SLOPE DEGREE:
- 27
- REVERSE SWITCH LOCATION:
- Control
- RPM LOW (II):
- 29
- RPM MEDIUM (IV):
- 56
- WATTS LOW:
- 3
- WATTS MEDIUM:
- 10
- ADDITIONAL INFO1:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO2:
- DC MOTOR WITH REVERSE SWITCH VARIABLE SPEEDS LIGHT CONTROLS SLEEP TIMER HOME AWAY FRESH AIR AND
- ADDITIONAL INFO3:
- ENERGY STAR MOST EFFICIENT 2020
- ADDITIONAL INFO4:
- TR205D HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
- ADDITIONAL INFO5:
- TR205D HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
- ADDITIONAL INFO6:
- TR205D handheld remote with CR2032 batteries included
- AIRFLOW EFFICIENCY LOW1:
- 357
- AIRFLOW EFFICIENCY MEDIUM1:
- 827
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 9
- CEILING TO BLADE EDGE:
- 15.33
- CEILING TO BOTTOM (NO LK):
- 13.2
- COMPATIBLE BLADES1:
- BPW8531-64BL BPW8531-64BN BPW8531-64DWA BPW8531-64N BPW8531-64WE BPW8531-64WW BPW8531-72BL BPW8531-72BN BPW8531-72DWA BPW8531-72N BPW8531-72WE BPW8531-72WW BPW8531-84BL BPW8531-84BN BPW8531-84DWA BPW8531-84N BPW8531-84WE B...
- RPM MEDIUM (IV)1:
- 88
- VOLTAGE CYCLES:
- 60 HZ
- CEILING TO BOTTOM (WITH LK):
- 16.55
- CEILING TO BLADE EDGE1:
- 4
- CEILING TO BOTTOM (NO LK)1:
- 15.96
- AVAILABLE FOR PURCHASE:
- YES
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- YES
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 3
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- UNKNOWN
- AVG ENERGY USE WATTS:
- 21
- RPM MINI I:
- 58
- HEIGHT RANGE:
- 15-20''
- WIDTH RANGE:
- 56'' AND OVER
- More Info {1}:
- 10846 CFM ON HIGH
- More Info {2}:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- More Info {3}:
- DC MOTOR WITH REVERSE SWITCH VARIABLE SPEEDS LIGHT CONTROLS SLEEP TIMER HOME AWAY FRESH AIR AND SAFE EXIT FEATURES
- More Info {4}:
- ENERGY STAR MOST EFFICIENT 2022
- More Info {5}:
- TR305 HANDHELD REMOTE WITH 23A BATTERY INCLUDED
- CANOPY DIAMETER:
- 6.14 DIA
- CANOPY HEIGHT:
- 2.55 H''
- CASE QUANTITY:
- 1
- CEILING TO BOTTOM1:
- 16.55
- CURRENT DRAW HIGH:
- 0.43
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 8
- HOUSING DIAMETER:
- 8.88
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 27
- MAX WATT:
- 31
- NUMBER OF SPEEDS:
- 16
- RPM HIGH (VI):
- 81
