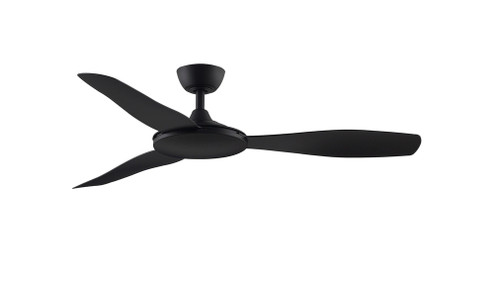

GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use {ADDITIONAL FINISH INFORMATION: ''BLACK''}
- OPTION:
- ENERGY EFFICIENT
- FAMILY:
- GlideAire
- ADDITIONAL INFO:
- 5876 CFM on High
- AIR FLOW CFM:
- 5538
- AIR FLOW EFFICIENCY:
- 215
- AMPERAGE:
- 0.36
- BLADE FINISH:
- Black
- BLADE PITCH:
- 15
- BLADES INCLUDED:
- 3
- CANOPY:
- 5.71 DIA X 2.23 H
- DIAMETER:
- 11.02
- DOWN ROD INCLUDED:
- 4.5
- ELECTRICITY USED:
- 26
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 52
- MATERIAL:
- Composite
- MOTOR FAN SPEED:
- 16
- MOTOR RPM:
- 173
- MOTOR SIZE:
- 158 X 15
- MOTOR TYPE:
- DC
- REMOTE CONTROL INCLUDED:
- TR205D
- SHIP CARTON HEIGHT:
- 8.58''
- SHIP CARTON LENGTH:
- 24.61
- SHIP CARTON WIDTH:
- 12.8''
- SHIP WEIGHT:
- 15.9
- SOLD BY:
- EA
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 13.3
- AIRFLOW EFFICIENCY LOW:
- 192
- AIRFLOW EFFICIENCY MEDIUM:
- 456
- AVG AIRFLOW EFFICIENCY:
- 218
- AVG CFM ENERGY:
- 3746
- AVG ENERGY USE (WATTS):
- 17
- AVG ESTIMATED YEARLY ENERGY COST:
- 5
- BLADE MATERIAL:
- Composite
- BLADE SWEEP:
- 52
- CARTON CUBIC FEET:
- 1.56
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 8.58''
- CASE LENGTH:
- 24.61
- CASE WEIGHT POUNDS:
- 15.9
- CASE WIDTH:
- 12.8''
- CFM LOW:
- 538
- CFM MEDIUM:
- 3371
- COMPATIBLE ACCESSORIES:
- CCK8002BL DR1-12BL DR1-18BL DR1-24BL DR1-36BL DR1-48BL DR1-60BL DR1-72BL DR1-CPBL SCK1-52BL
- COMPATIBLE CONTROLS:
- WFR8159
- COMPATIBLE WALL CONTROLS:
- TW306
- CONTROL TYPE:
- Handheld
- CURRENT DRAW LOW:
- 0.05
- CURRENT DRAW MEDIUM:
- 0.11
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- FAN ENERGY STAR 5:
- Yes
- INCLUDED CONTROL:
- TR205D
- LEADWIRE:
- 54
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 28
- RPM MEDIUM (IV):
- 105
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- WATTS LOW:
- 3
- WATTS MEDIUM:
- 7
- HEIGHT:
- 9.98
- WIDTH:
- 52.00
- WALL:
- YES
- FINISH:
- BLACK
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- STANDARD STYLE:
- TRADITIONAL
- ADDITIONAL INFO1:
- COMPATIBLE WITH MOST SMART HOME DEVICES (REQUIRED CONTROLS SOLD SEPARATELY)
- ADDITIONAL INFO2:
- DC MOTOR WITH REVERSE SWITCH VARIABLE FAN SPEEDS LIGHT CONTROL SLEEP TIMER HOME AWAY FRESH AIR
- ADDITIONAL INFO3:
- ENERGY STAR MOST EFFICIENT 2020
- ADDITIONAL INFO4:
- SET OF (3) 52 INCH DAMP RATED BLACK OR BRUSHED NICKEL BLADES INCLUDED
- CANOPY1:
- Diameter- 6.34 Height- 2.83''
- CANOPY2:
- Diameter- 6.52 Height- 2.59''
- LIGHT KIT INCLUDED:
- No
- MOTOR RPM1:
- 70
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 7
- BLADE FINISH METHOD:
- Painted
- BLADE REVERSIBLE:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 4
- CEILING TO BLADE EDGE1:
- 9.15
- CEILING TO BOTTOM (NO LK):
- 9.98
- COMPATIBLE CONTROLS1:
- WFR8520
- DOE-FTC UPLOADED:
- Yes
- HAMONIZED CODE:
- 8414.51.3000
- LEAD WIRE:
- 54
- REVERSE SWITCH LOCATION:
- Control
- RPM MEDIUM (IV)1:
- 50
- VOLTAGE CYCLES:
- 60 HZ
- CEILING:
- YES
- HEIGHT RANGE:
- 0-15''
- WIDTH RANGE:
- 50-55''
- AVAILABLE FOR PURCHASE:
- YES
- ADDITIONAL INFO5:
- TR205 HANDHELD REMOTE WITH CR2032 BATTERIES INCLUDED
- BLADE FINISH METHOD TYPE:
- PAINTED
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- YES
- MAXIMUM SLOPE DEGREE:
- 19
- MOTOR FINISH METHOD TYPE:
- PAINTED
- NUMBER OF BLADES:
- 3
- PRODUCT CERTIFICATION LABEL:
- UL/CUL
- QUANTITY AVAILABLE AT MANUFACTURER:
- 188
- More Info {1}:
- CONTROL: USE YOUR SMART HOME DEVICE WITH OUR FANSYNC APP OR USE THE INCLUDED TR205DS HAND-HELD REMOTE WITH TWO 3V CR2032 BATTERIES - PUSH BUTTONS CONTROL 16 FAN SPEEDS FAN TIMER FAN OFF AND FRESH AIR REVERSE HOME AWAY SAFE EXIT MODE...
- More Info {2}:
- INSTALLATION: MOUNTS TO FLAT OR MINIMALLY SLOPED CEILINGS W/ THE INCLUDED 1-IN DIAMETER X 4.5-IN LENGTH DOWNROD - OPTIONAL DOWNRODS ARE AVAILABLE IN LENGTHS UP TO 72'' TO ADJUST THE FANS HEIGHT BETWEEN 7-FT TO 9-FT FROM THE FLOOR ENSURING ..''.
- More Info {3}:
- IT ALSO ENABLES VOICE CONTROL THROUGH COMPATIBLE SMART HOME SYSTEMS LIKE ALEXA & GOOGLE ASSISTANT ALONG W/ CONVENIENT FEATURES SUCH AS SCHEDULING TIMERS HOME/AWAY MODE & GROUPING MULTIPLE FANS TOGETHER FOR SYNCHRONIZED CONTROL THROUGHO...
- More Info {4}:
- LIGHTING: LIGHT KIT NOT INCLUDED
- More Info {5}:
- LOCATION: DAMP RATED FOR USE IN INDOOR AND OUTDOOR COVERED SPACES EXPOSED TO MOISTURE AND HUMIDITY
- More Info {6}:
- POWER: THE 16-SPEED QUIET AND ENERGY EFFICIENT DC MOTOR PROVIDES AIRFLOW UP TO 5538 CFM
- AVG ENERGY USE WATTS:
- 17
- CANOPY DIAMETER:
- 5.71 DIA
- CANOPY HEIGHT:
- 2.23 H''
- CASE QUANTITY:
- 1
- CURRENT DRAW HIGH:
- 0.36
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- HOUSING DIAMETER:
- 11.02
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 26
- NUMBER OF SPEEDS:
- 16
- RPM HIGH (VI):
- 173
- IMAGE INFO:
- 5/5/2025 14:41
- OPTION1:
- OUTDOOR
- OPTION2:
- OUTDOOR
- OPTION3:
- PROP 65
- BLADE SPAN:
- 52
- More Info {7}:
- SAVINGS: FEATURES A REVERSIBLE MOTOR THAT ALLOWS YOU TO CHANGE THE DIRECTION OF AIRFLOW SEASONALLY HELPING MAXIMIZE COMFORT THROUGHOUT THE YEAR WHILE SUPPORTING MORE EFFICIENT HEATING AND COOLING IN YOUR HOME.
- More Info {8}:
- TECHNOLOGY: FEATURES FANSYNC WI-FI CONNECTIVITY GIVING YOU FULL SMART CONTROL OF YOUR CEILING FAN FROM ANYWHERE.
- More Info {9}:
- WARRANTY: LIMITED LIFETIME WARRANTY FOR THE ORIGINAL PURCHASER PROVIDING LONG-TERM MOTOR COVERAGE AND DEPENDABLE PERFORMANCE YOU CAN TRUST. FOR ASSISTANCE CONTACT FANIMATION TECH SUPPORT AT 1-888-567-2055
- CEILING TO BOTTOM (NO LIGHT KIT):
- 9.98
- ENERGY EFFICIENT:
- YES
- ENERGY STAR:
- YES
- INDOOR:
- YES
- LOCATION RATING:
- DAMP RATED
- OUTDOOR:
- YES
- PROP 65:
- YES
- PROP 65 DESCRIPTION:
- THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS INCLUDING LEAD WHICH ARE KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE INFORMATION GO TO WWW.P65WARNINGS.CA.GOV
- WATTS HIGH:
- 26
- 10:
- WITH THE FANSYNC APP YOU CAN ADJUST FAN SPEED TURN THE LIGHT ON/OFF DIM LIGHTING CHANGE COLOR TEMPERATURE (ON CCT MODELS) AND REVERSE AIRFLOW ALL FROM YOUR SMARTPHONE.
- WARRANTY TYPE:
- LIMITED LIFETIME
