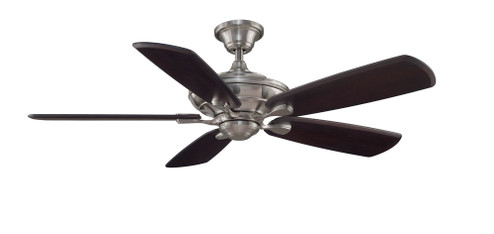

The myFanimation mix-and-match offering puts design into the hands of customers as you select a motor, blades, fitters and glass to build your own fan. The fan includes Fanimation's latest innovations such as Hang Right and Fan Shield, which help to minimize vibration and eliminate noise, respectively. The design also brilliantly conceals screws so all eyes can be on your beautiful design. And, with its tri-mount feature, the Distinction fan can be easily installed one of three ways: flush-mount, standard or slope. The myFanimation mix-and-match offering puts design into the hands of customers as you select a motor, blades, fitters and glass to build your own fan. The fan includes Fanimation's latest innovations such as Hang Right? and Fan Shield?, which help to minimize vibration and eliminate noise, respectively. The design also brilliantly conceals screws so all eyes can be on your beautiful design. And, with its tri-mount feature, the Distinction fan can be easily installed one of three ways: flush-mount, standard or slope. {ADDITIONAL FINISH INFORMATION: ''Brushed Nickel''}
- OPTION:
- DAMP
- FAMILY:
- myFanimation
- ADDITIONAL INFO:
- BTT9R Bluetooth hand-held remote included
- ADDITIONAL INFO1:
- Damp Rated
- ADDITIONAL INFO2:
- Energy Star rated
- ADDITIONAL INFO3:
- Optional 54'' blades
- ADDITIONAL INFO4:
- Optional exclusive lighting fitters and light kits
- AIR FLOW CFM:
- 6235
- AIR FLOW EFFICIENCY:
- 83
- AMPERAGE:
- 0.63
- BLADE PITCH:
- 14
- BLADES INCLUDED:
- 5
- CANOPY:
- 6.34 DIA X 2.83 H
- DIAMETER:
- 12.98
- DOWN ROD INCLUDED:
- 4.5
- ELECTRICITY USED:
- 75
- HARMONIZED CODES:
- 8414.51.3000
- LENGTH:
- 14.76
- MOTOR FAN SPEED:
- 3
- MOTOR RPM:
- 176
- MOTOR SIZE:
- 188 X 25
- MOTOR TYPE:
- AC
- REMOTE CONTROL INCLUDED:
- BTT9R
- SHIP CARTON HEIGHT:
- 11.73''
- SHIP CARTON LENGTH:
- 14.76
- SHIP CARTON WIDTH:
- 14.76''
- SHIP WEIGHT:
- 23.49
- SOLD BY:
- EACH
- VOLTAGE:
- 120 V
- WARRANTY:
- LIMITED LIFETIME
- WEIGHT:
- 23.5
- AIRFLOW EFFICIENCY LOW:
- 186
- AIRFLOW EFFICIENCY MEDIUM:
- 117
- AVG AIRFLOW EFFICIENCY:
- 55
- AVG CFM ENERGY:
- 2810
- AVG ENERGY USE (WATTS):
- 46
- AVG ESTIMATED YEARLY ENERGY COST:
- 13
- AVG ESTIMATED YEARLY ENERGY COST ON HIGH:
- 21
- CARTON CUBIC FEET:
- 1.48
- CARTONS PER UNIT:
- 1
- CASE HEIGHT:
- 11.73''
- CASE LENGTH:
- 14.76
- CASE WEIGHT POUNDS:
- 23.49
- CASE WIDTH:
- 14.76''
- CFM LOW:
- 1697
- CFM MEDIUM:
- 4036
- COMPATIBLE ACCESSORIES:
- APG245BL DR1-12BN DR1-18BN DR1-24BN DR1-36BN DR1-48BN DR1-60BN DR1-72BN DR1-CPBN SCK1-52BN
- COMPATIBLE BLADES:
- B154CY B154DWA B154MW B154WA B154WE B254CY B254DWA B254MW B254WA B354CY B354DWA B354MW B354WA B454CYN B454WADWA B554DWA B554MW B654DWA B654MW B754DWA B854DC B854MW
- COMPATIBLE CONTROLS:
- BTT9 C4 CRL4WH CRL8TS
- COMPATIBLE LIGHT KITS:
- F1BN F2BN F3BN F4BN
- COMPATIBLE WALL CONTROLS:
- C21 CW1LA CW1SWLA CW1SWWH CW1WH CW2LA CW2WH CW5LA CW5WH CW60WH
- CONTROL TYPE:
- Handheld
- CURRENT DRAW LOW:
- 0.21
- CURRENT DRAW MEDIUM:
- 0.42
- DAMP RATED:
- Yes
- DOE CLASSIFICATION:
- LSSD
- INCLUDED CONTROL:
- BTT9R
- LEADWIRE:
- 54
- MOTOR REVERSIBLE:
- Yes
- REGULATED PRODUCT:
- Yes
- RPM LOW (II):
- 47
- RPM MEDIUM (IV):
- 109
- SAFETY RATING:
- UL APPROVED CUL APPROVED
- VOLTAGE CYCLES:
- 60 HZ
- WATTS LOW:
- 9
- WATTS MEDIUM:
- 35
- HEIGHT:
- 11.73
- WIDTH:
- 14.76
- WALL:
- YES
- QUANTITY AVAILABLE AT MANUFACTURER:
- 258
- FINISH:
- NICKEL
- ON DISPLAY IN SHOWROOM:
- No
- IN STOCK IN SHOWROOM:
- No
- Standard Style:
- Traditional
- LENGTH1:
- 101.5701 IN
- LIGHT KIT INCLUDED:
- No
- BROCHURE:
- Manufacturer Brochure
- CAP INCLUDED:
- No
- CEC UPLOADED:
- Yes
- CEILING TO BLADE EDGE:
- 12.78
- CEILING TO BOTTOM (NO LK):
- 14.2
- DOE-FTC UPLOADED:
- Yes
- HAMONIZED CODE:
- 8414.51.3000
- LEAD WIRE:
- 54
- MOTOR FINISH METHOD:
- Plated
- SPECIAL FEATURES:
- 3 In Uprights #12-24 Mounting Holes Double Sided Mounting Spacing Weight 33 Lb
- CEILING:
- YES
- AVAILABLE FOR PURCHASE:
- YES
- EXEMPT FROM DOE PROCEDURE:
- NO
- FAN ENERGY STAR 4:
- NO
- MAXIMUM SLOPE DEGREE:
- 19
- MOTOR FINISH METHOD TYPE:
- PLATED
- NUMBER OF BLADES:
- 5
- PRODUCT CERTIFICATION LABEL:
- UL
- Quantity Available at Manufacturer:
- 0
- More Info {1}:
- BTT9R BLUETOOTH HAND-HELD REMOTE INCLUDED
- More Info {2}:
- DAMP RATED
- More Info {3}:
- ENERGY STAR RATED
- More Info {4}:
- OPTIONAL 54'' BLADES
- More Info {5}:
- OPTIONAL EXCLUSIVE LIGHTING FITTERS AND LIGHT KITS
- AVG ENERGY USE WATTS:
- 46
- CANOPY DIAMETER:
- 6.34 DIA
- CANOPY HEIGHT:
- 2.83 H''
- CASE QUANTITY:
- 1
- CURRENT DRAW HIGH:
- 0.63
- DOEFTC UPLOADED:
- YES
- DOWNROD LENGTH:
- 4.5
- HOUSING DIAMETER:
- 12.98
- INCLUDED CONTROL TYPE:
- HANDHELD
- MAX CEILING SLOPE:
- 19
- MAX WATT:
- 75
- NUMBER OF SPEEDS:
- 3
- RPM HIGH (VI):
- 176
